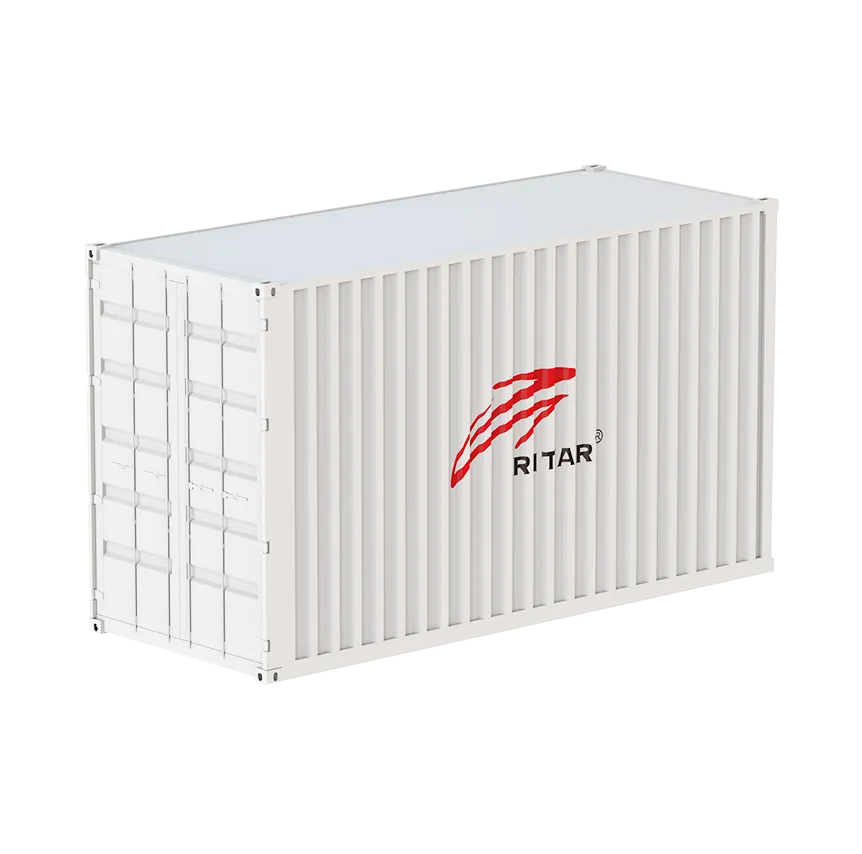

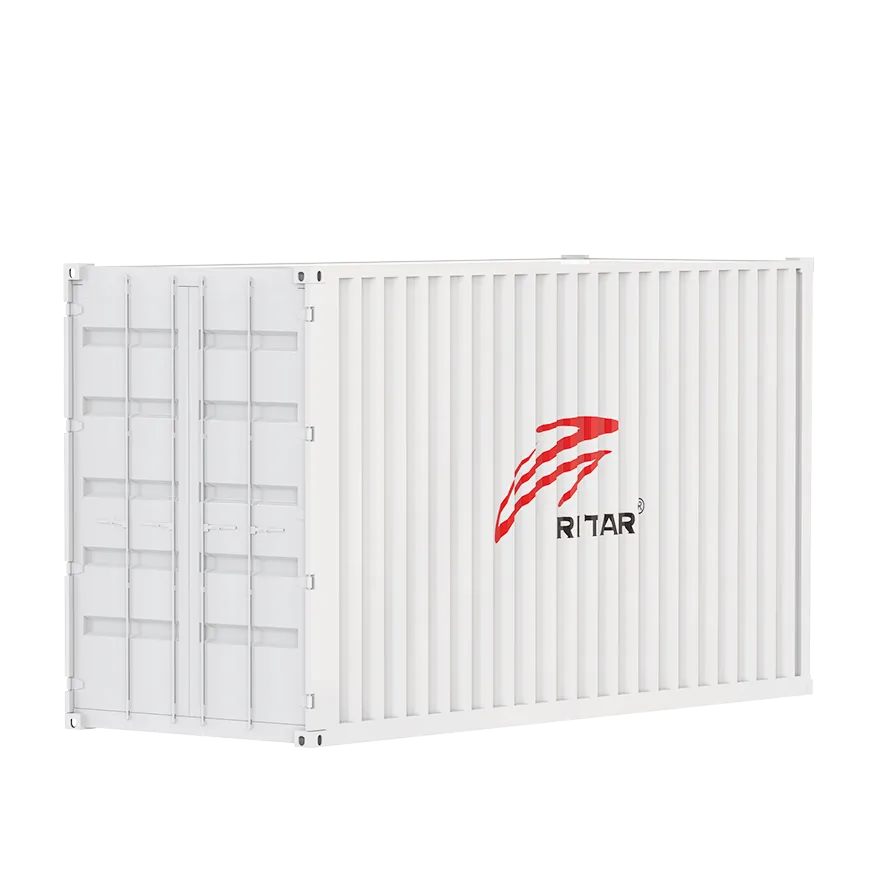

OPzV 500Wh Energy Storage Cabinet

Safety

100% Solid-State Electrolyte: Adopts nano fumed silica-based solid electrolyte.
Material Safety: Cathode, anode, separator, electrolyte and other key components are fire and explosion-proof rated.
EMS Intelligent Control: Ensures battery temperature rise stays below 40℃, eliminating thermal runaway risks.

Eco-Friendliness & Recyclability

Zero-Emission Manufacturing: No wastewater, waste gas or solid waste discharged during the production process.
100% Recyclable Waste Batteries: End-of-life batteries achieve full closed-loop recycling.

Learn More

Get a Free Quote

Our Features

Features of OPzV 500Wh Energy Storage Cabinet

Safety

100% Solid-State Electrolyte: Adopts nano fumed silica-based solid electrolyte.
Material Safety: Cathode, anode, separator, electrolyte and other key components are fire and explosion-proof rated.
EMS Intelligent Control: Ensures battery temperature rise stays below 40℃, eliminating thermal runaway risks.

Eco-Friendliness & Recyclability

Zero-Emission Manufacturing: No wastewater, waste gas or solid waste discharged during the production process.
100% Recyclable Waste Batteries: End-of-life batteries achieve full closed-loop recycling.

High Efficiency

Cost-Effective & Long-Lasting: Boasts a 25-year design lifespan for exceptional longevity and low lifecycle costs.
Charge-Discharge Efficiency: Over 94%.

Versatile Application Scenarios

Grid & Renewable Energy Storage: Wind/solar power storage, grid peak shaving and frequency regulation, virtual power plants, peak-valley tariff arbitrage, power security.
Hybrid Energy Systems: Rural revitalization energy support, charging pile + energy storage, UPS + energy storage, thermal power plant + energy storage, pumped hydro storage + solid-state storage, etc.

100% Solid-State Electrolyte: Adopts nano fumed silica-based solid electrolyte.Material Safety: Cathode, anode, separator, electrolyte and other key components are fire and explosion-proof rated.EMS I...

Zero-Emission Manufacturing: No wastewater, waste gas or solid waste discharged during the production process.100% Recyclable Waste Batteries: End-of-life batteries achieve full closed-loop recycling.

Cost-Effective & Long-Lasting: Boasts a 25-year design lifespan for exceptional longevity and low lifecycle costs.Charge-Discharge Efficiency: Over 94%.

Grid & Renewable Energy Storage: Wind/solar power storage, grid peak shaving and frequency regulation, virtual power plants, peak-valley tariff arbitrage, power security.Hybrid Energy Systems: Rur...

Our Specifications

Specifications of OPzV 500Wh Energy Storage Cabinet

Item	Specification
Energy Storage System Parameters
Energy Storage Capacity	500kWh
Energy Storage Power	125kW
Grid-Connected Voltage	400V±10%
Grid-Connected Frequency	50Hz (-6%~+3%)
Wiring Mode	Three-Phase Four-Wire System
Operating Mode	Grid-Tied / Off-Grid
System Efficiency	≥80%
Container Specification	Customized 20ft Container
Container Dimensions (mm)	6058×2438×3450
Fire Protection System	Heptafluoropropane Fire Suppression System
Protection Class	IP54
Energy Storage Inverter Parameters
Rated Power	125kW
Overload Capacity	1.2P/5min
Total Harmonic Distortion (THD)	<3%
Power Factor	≥0.99
Communication Interface	RS485/CAN/RJ45
Communication Protocol	MODBUS TCP/RTU, IEC 104
Grid/Off-Grid Switching	Supported (Optional)
Maximum Inversion Efficiency	98%
Energy Storage Battery System Parameters
Battery Type	Acid-Free Solid-State Battery
Rated Voltage	696V
Operating Voltage Range	661V~835V
Rated Energy Storage Capacity	0.518MWh
Cycle Life	3,500 Cycles @ 80% DOD
Battery Management System (BMS)	Equipped
