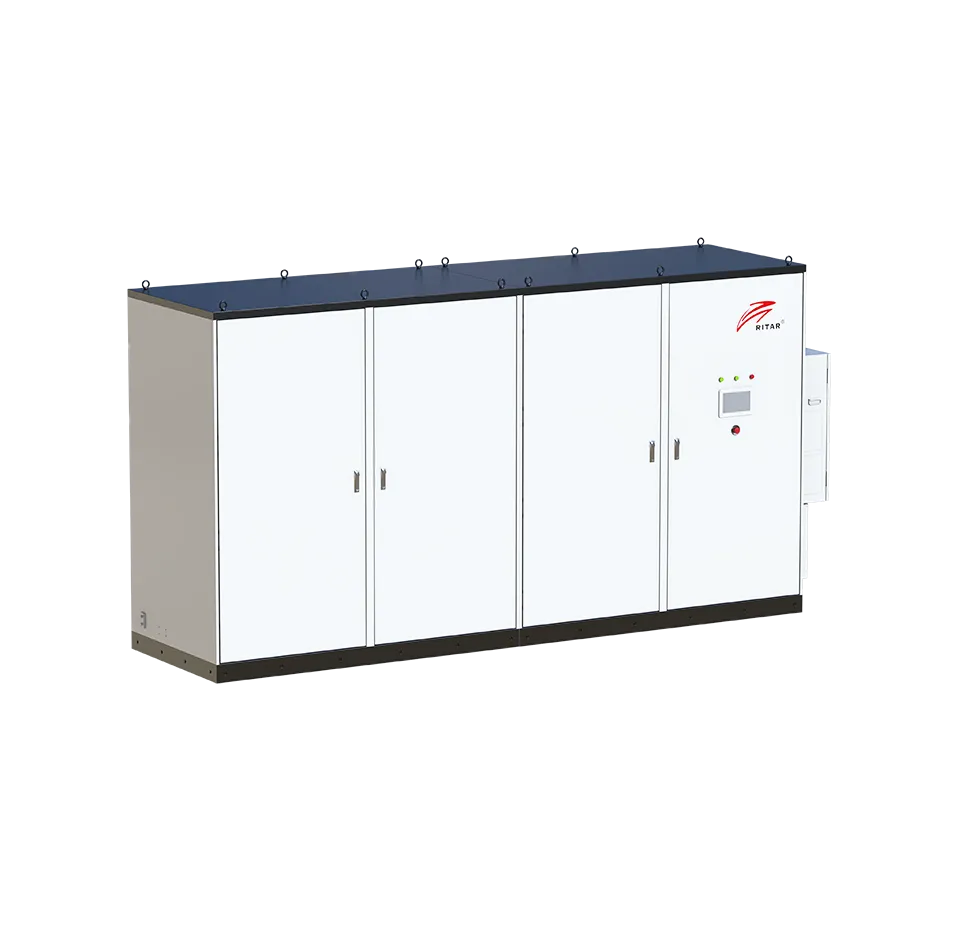

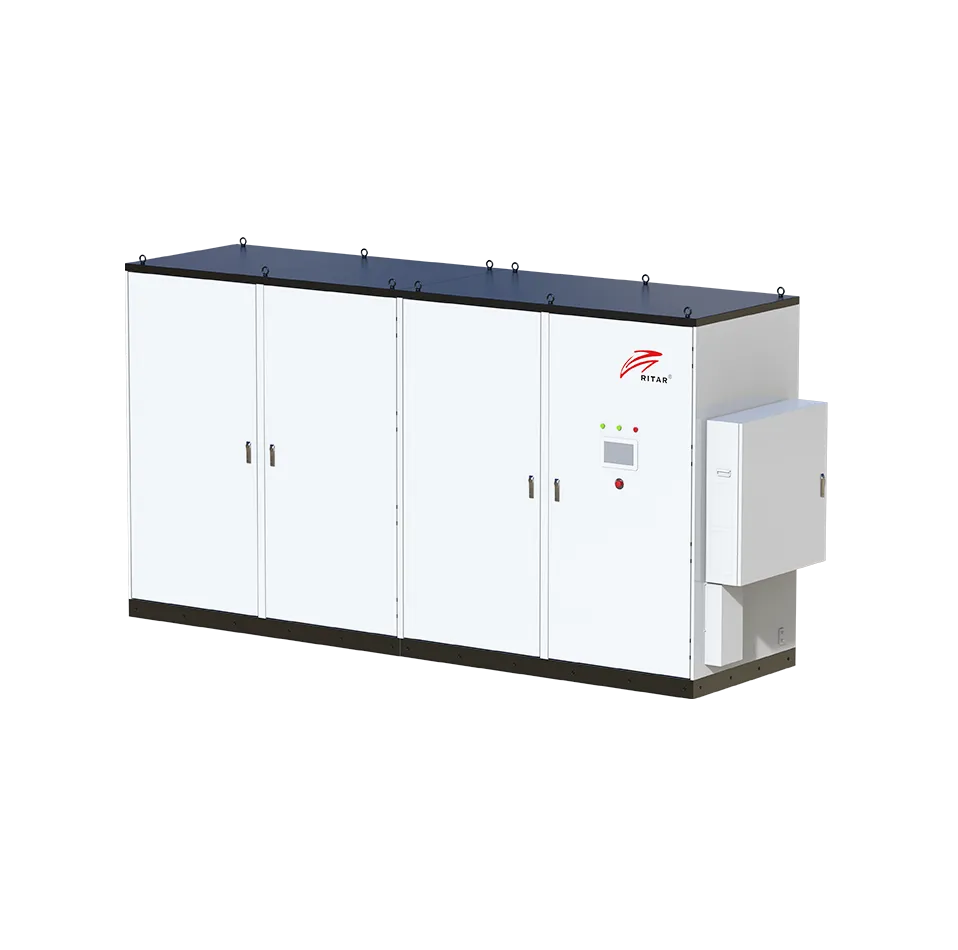

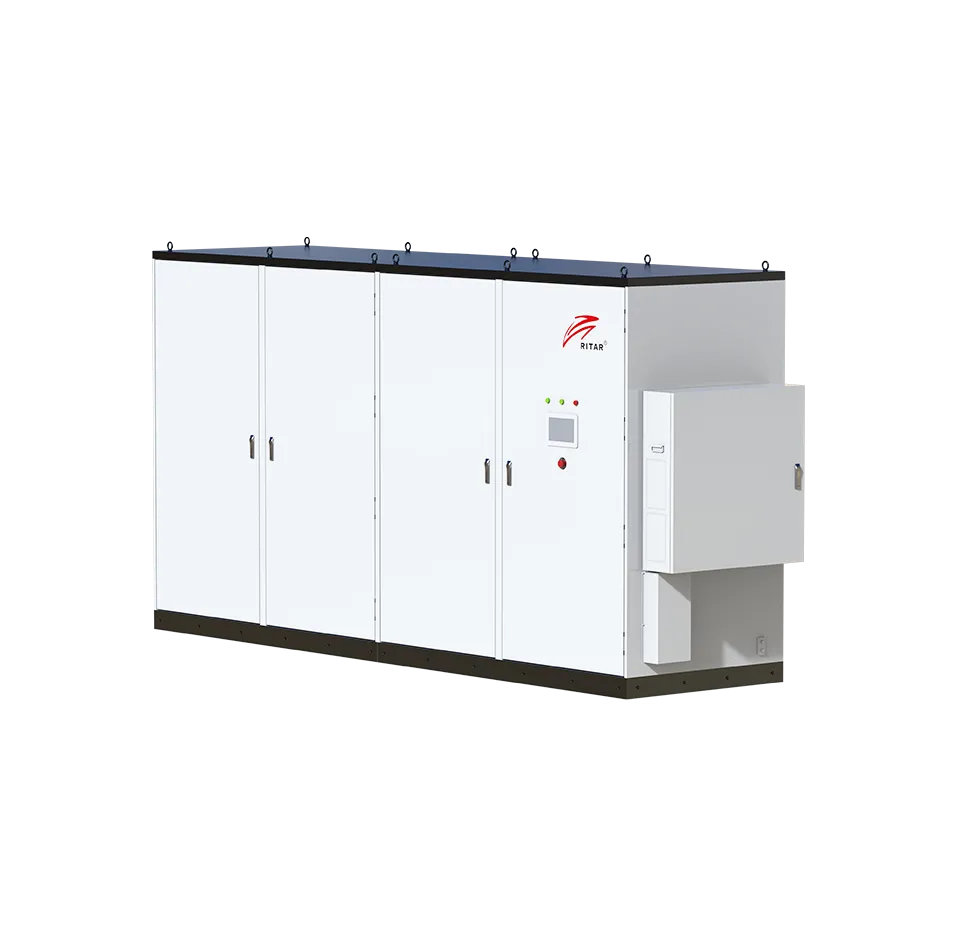

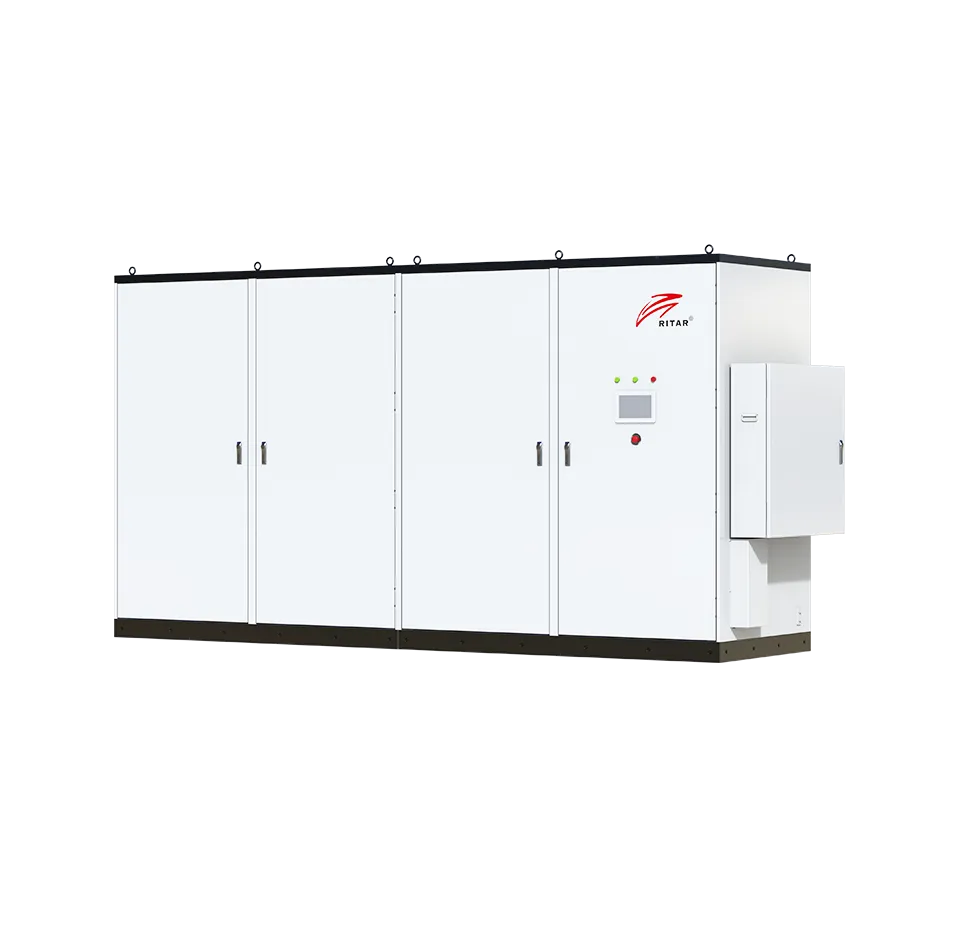

OPzV 216Wh Energy Storage Cabinet

  • Design philosophy of standardization, modularization and systematization

  • High product integration with sophisticated control logic; independent single battery cluster achieves zero circulating current to minimize power loss

  • Adopting acid-free solid-state lead batteries, the product features inherent safety with zero risk of fire or explosion. It also offers excellent cost-effectiveness, long cycle life, and over 3,500 cycles at 80% DOD

  • Interleaved three-level topology enables high equivalent switching frequency, low ripple and enhanced system stability

  • Equipped with PQ, VF, SVG, VSG and other functions, supporting high/low voltage ride-through

  • Rapid power dispatch, off-grid operation and black start capability ensure strong grid adaptability

  • IP65 protection class and wide-temperature operation capability deliver broader environmental adaptability

  • Multiple built-in protection functions provide 360° all-round safeguards



Learn More
Get a Free Quote
Our Features
Features of OPzV 216Wh Energy Storage Cabinet
Design philosophy of standardization, modularization and systematization

Design philosophy of standardization, modularization and systematization


High product integration with sophisticated control logic; independent single battery cluster achieves zero circulating current to minimize power loss

High product integration with sophisticated control logic; independent single battery cluster achieves zero circulating current to minimize power loss

Adopting acid-free solid-state lead batteries, the product features inherent safety with zero risk of fire or explosion. It also offers excellent cost-effectiveness, long cycle life, and over 3,500 cycles at 80% DOD

Adopting acid-free solid-state lead batteries, the product features inherent safety with zero risk of fire or explosion. It also offers excellent cost-effectiveness, long cycle life, and over 3,500 cycles at 80% DOD


Interleaved three-level topology enables high equivalent switching frequency, low ripple and enhanced system stability

Interleaved three-level topology enables high equivalent switching frequency, low ripple and enhanced system stability


Equipped with PQ, VF, SVG, VSG and other functions, supporting high/low voltage ride-through

Equipped with PQ, VF, SVG, VSG and other functions, supporting high/low voltage ride-through


Rapid power dispatch, off-grid operation and black start capability ensure strong grid adaptability

Rapid power dispatch, off-grid operation and black start capability ensure strong grid adaptability


IP65 protection class and wide-temperature operation capability deliver broader environmental adaptability

IP65 protection class and wide-temperature operation capability deliver broader environmental adaptability


Multiple built-in protection functions provide 360° all-round safeguards

Multiple built-in protection functions provide 360° all-round safeguards

Design philosophy of standardization, modularization and systematization
High product integration with sophisticated control logic; independent single battery cluster achieves zero circulating current to minimize power loss
Adopting acid-free solid-state lead batteries, the product features inherent safety with zero risk of fire or explosion. It also offers excellent cost-effectiveness, long cycle life, and over 3,500 cy...
Interleaved three-level topology enables high equivalent switching frequency, low ripple and enhanced system stability
Equipped with PQ, VF, SVG, VSG and other functions, supporting high/low voltage ride-through
Rapid power dispatch, off-grid operation and black start capability ensure strong grid adaptability
IP65 protection class and wide-temperature operation capability deliver broader environmental adaptability
Multiple built-in protection functions provide 360° all-round safeguards
01
/
05
Our Specifications

Specifications of OPzV 216Wh Energy Storage Cabinet

ItemSpecification
ModelRITAR-OPzV-216kWh Energy Storage Cabinet
DC Side Parameters
Cell SpecificationOPzV2-300
Battery Series-Parallel Configuration360S1P
Battery Capacity (Optional)216kWh
Voltage Range648V～846V
BMS Communication InterfaceRS485
BMS Communication ProtocolMulti-channel RS485/dry contact; supports Modbus RTU protocol
AC Side Parameters
PCS Rated Power50kW
PCS Maximum Output Power55kW
Grid-Connected Operation Parameters
Rated Voltage400Vac
Voltage Range320Vac/450Vac
Rated Frequency50Hz/60Hz (Auto-detection)
Frequency Range50Hz/60Hz (-2.5-1.5)
Total Current Harmonic Distortion<3% (@Rated Power)
Maximum Efficiency>97.3%
Maximum Bypass Overload Current50kA@2ms
Off-Grid Operation Parameters
Off-Grid Output Voltage400V
Voltage Deviation±5%
Grid/Off-Grid Switching Time<20ms
General Parameters
Dimensions (WDH)430013002500mm
Weight10000kg
Protection ClassIP65
Operating Temperature Range-20℃～+50℃
Humidity Range0～95% (Non-Condensing)
Maximum Operating AltitudeNo derating below 2000m; derated operation for 2000m~4000m
Cooling MethodAir Conditioning Cooling
Communication InterfaceEthernet Port
Communication ProtocolModbus RTU, Modbus-TCP, CAN2.0, TCP/IP
