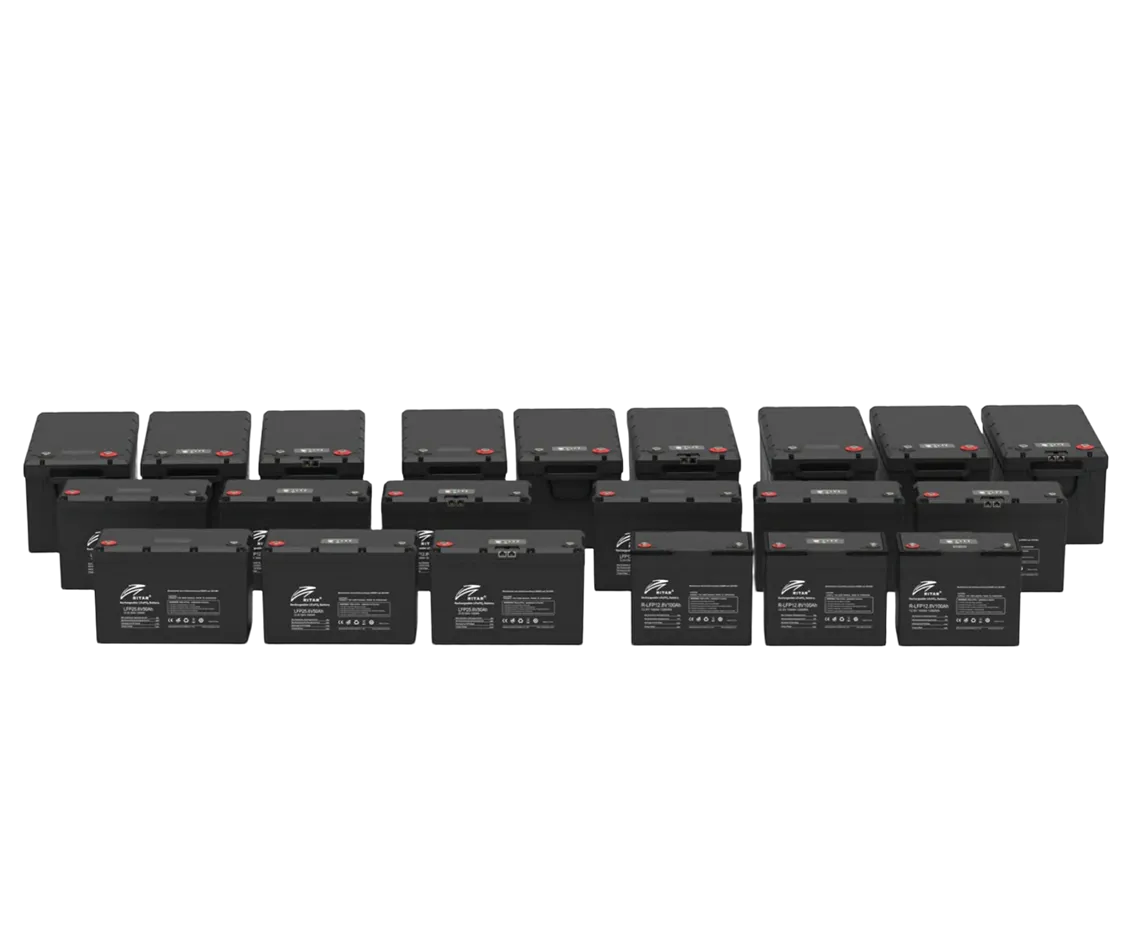

Lead-Acid to Lithium Battery

Name: Lead-Acid to Lithium Battery
Brand: Ritar International Group

Learn More

Get a Free Quote

Our Features

Features of Lead-Acid to Lithium Battery

Long life type prismatic LiFePO4 cell.

Cell certificates: UN38.3, ROHS, IEC62619, UL1973.

Battery certificates: UN38.3, MSDS, IEC, CE.

Detachable case, better than traditional case.

IP65 Class, water-proof design.

Case material ABS+PC, better and stronger than ABS case.

Optional function: Communication port, LED,Bluetooth, Heating etc.

Integrated BMS inside.

Independent protection for charge and discharge.

OVP, LVP, OCP, OTP, LTP, OTP, Short circuit protection

Support LED indicator, Heater, Bluetooth module.

Long life type prismatic LiFePO4 cell.

Cell certificates: UN38.3, ROHS, IEC62619, UL1973.

Battery certificates: UN38.3, MSDS, IEC, CE.

Detachable case, better than traditional case.

IP65 Class, water-proof design.

Case material ABS+PC, better and stronger than ABS case.

Optional function: Communication port, LED,Bluetooth, Heating etc.

Integrated BMS inside.

Independent protection for charge and discharge.

OVP, LVP, OCP, OTP, LTP, OTP, Short circuit protection

Support LED indicator, Heater, Bluetooth module.

01

/

05

Our Specifications

Specification of Lead-Acid to Lithium Battery

Model	Nominal Voltage[V]	Nominal Capacity[Ah]	L[mm]	W[mm]	H[mm]	Terminal
GL-G Series
R-LFP6.4V4.5Ah	6.4	4.5	70	47	100	F1
R-LFP12.8V6Ah	12.8	6	151	65	93.5	F2
R-LFP12.8V8Ah	12.8	8	151	65	93.5	F2
R-LFP12.8V9Ah	12.8	9	151	65	93.5	F2
R-LFP12.8V12Ah	12.8	12	151	65	93.5	F2
R-LFP12.8V12Ah	12.8	12	151	98	95	F2
R-LFP12.8V18Ah	12.8	18	151	98	95	F2
R-LFP12.8V18Ah	12.8	18	151	98	95	T4
R-LFP12.8V20Ah	12.8	20	181	77	167	F13-BP (Φ12, M5)
R-LFP12.8V24Ah	12.8	24	181	77	167	F13-BP (Φ12, M5)
R-LFP12.8V30Ah	12.8	30	195	130	155	IF11 (Φ14, M6)
R-LFP12.8V50Ah	12.8	50	198	166	169	IF11 (Φ14, M6)
R-LFP12.8V100Ah	12.8	100	229	138	210	I3 (Φ16, M8)
R-LFP12.8V100Ah	12.8	100	306	168	220	F12 (Φ17.5, M8)
R-LFP12.8V100Ah	12.8	100	355	176	190	/
R-LFP12.8V100Ah	12.8	100	508	110	236	F12 (Φ18, M8)
R-LFP12.8V135Ah	12.8	135	355	176	190	/
R-LFP12.8V150Ah	12.8	150	483	170	241	I3 (Φ16, M8)
R-LFP25.6V200Ah	25.6	200	522	268	220	F10 (Φ20, M8)
R-LFP38.4V50Ah	38.4	50	384	194	248	F10 (Φ20, M8)
GL-N Series
LFP12.8V100Ah Mini	12.8	100	138	229	210	Φ 16, M8
LFP12.8V100Ah-G24	12.8	100	168	260	210	Φ 16, M8
LFP12.8V100Ah-G31	12.8	100	172	330	214	Φ17.5, M8
LFP12.8V135Ah	12.8	135	175	335	190	Φ17.5, M8
LFP12.8V135Ah	12.8	135	172	330	214	Φ17.5, M8
LFP12.8V200Ah	12.8	200	240	522	229	Φ20, M8
LFP12.8V280Ah	12.8	280	240	522	219	Φ20, M8
LFP12.8V300Ah	12.8	300	240	522	219	Φ20, M8
LFP12.8V314Ah	12.8	314	384	194	248	F10 (Φ20, M8)
LFP12.8V400Ah	12.8	400	522	268	220	F10 (Φ20, M8)
LFP25.6V50Ah-G31	25.6	50	172	330	214	Φ17.5, M8
LFP25.6V72Ah	25.6	72	172	330	214	Φ17.5, M8
LFP25.6V100Ah	25.6	100	240	522	219	Φ20, M8
LFP25.6V150Ah	25.6	150	240	522	219	Φ20, M8
