EV Series Lead-Acid Batteries

Capacity range: 10Ah-300Ah (C20, 25℃)
Rated voltage: 12V
Certified by UL, CE, ISO9001, ISO14001 and ISO45001
Adopt 1# electrolytic lead with purity up to 99.994%
Adopt patented active material formula designed for power cycle application

Learn More

Get a Free Quote

Our Features

Features of EV Series Lead-Acid Batteries

Capacity range: 10Ah-300Ah (C20, 25℃)

Rated voltage: 12V

Certified by UL, CE, ISO9001, ISO14001 and ISO45001

Adopt 1# electrolytic lead with purity up to 99.994%

Adopt patented active material formula designed for power cycle application

Adopt high-pressure assembly technology

Adopt special patented alloy formula, grid has stronger corrosion resistance

Adopt high temperature and high humidity curing process, life, capacity and batch consistency are guaranteed

Ear hanging process design, high consistency of plate curing and drying

Adopt hidden independent valve design to effectively avoid safety valve blockage

Capacity range: 10Ah-300Ah (C20, 25℃)

Rated voltage: 12V

Certified by UL, CE, ISO9001, ISO14001 and ISO45001

Adopt 1# electrolytic lead with purity up to 99.994%

Adopt patented active material formula designed for power cycle application

Adopt high-pressure assembly technology

Adopt special patented alloy formula, grid has stronger corrosion resistance

Adopt high temperature and high humidity curing process, life, capacity and batch consistency are guaranteed

Ear hanging process design, high consistency of plate curing and drying

Adopt hidden independent valve design to effectively avoid safety valve blockage

Our Specifications

Specifications of EV Series Lead-Acid Batteries

Battery model	Rated voltage （V）	Rated capacity C₂₀（Ah）	Battery size				Terminal options	Terminal location
Battery model	Rated voltage （V）	Rated capacity C₂₀（Ah）	Length/mm	Width/mm	Height/mm	Total height/mm	Terminal options	Terminal location
EV12-10	12	10	151	98	95	101	F1/F2	F
EV12-12	12	12	151	98	95	101	F1/F2	F
EV12-14	12	14	151	98	99	105	F1/F2	F
EV12-18	12	18	181	77	167	167	F3(M5) / F13-BP(M5)	D
EV12-22	12	22	181	77	167	167	F3(M5) / F13-BP(M5)	D
EV12-22	12	22	181	77	170	170	F18	D
EV12-24	12	24	182.5	78.5	170	170	T23	D
EV12-24X	12	24	181	77	170	170	F18	D

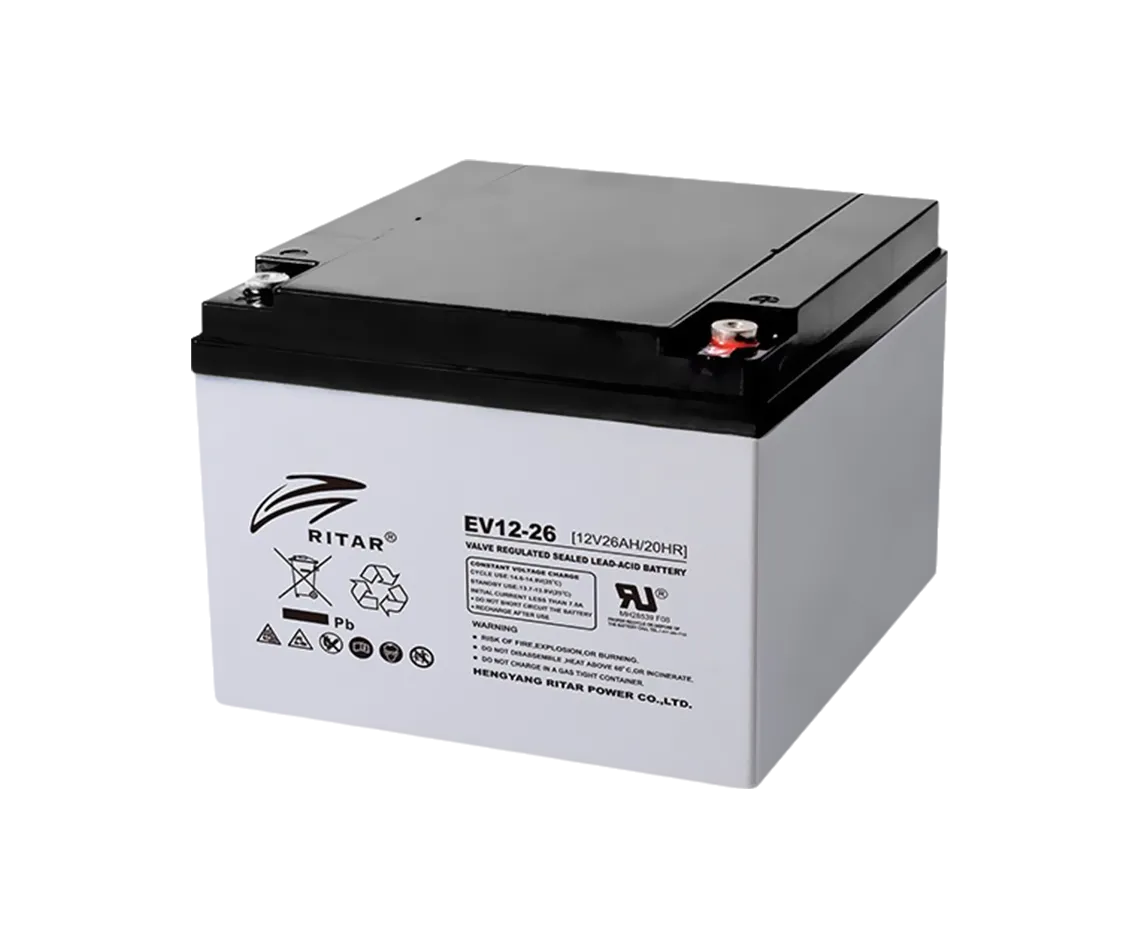

EV12-26	12	26	166	176	125	125	F3(M5) / F13-BP(M5)	D
EV6-180	6	180	306	168	220	227	F12(M8)	B
EV6-200S	6	200	306	168	220	227	F12(M8)	B
EV6-200	6	200	322	177.5	226	231	F14(M8)	A

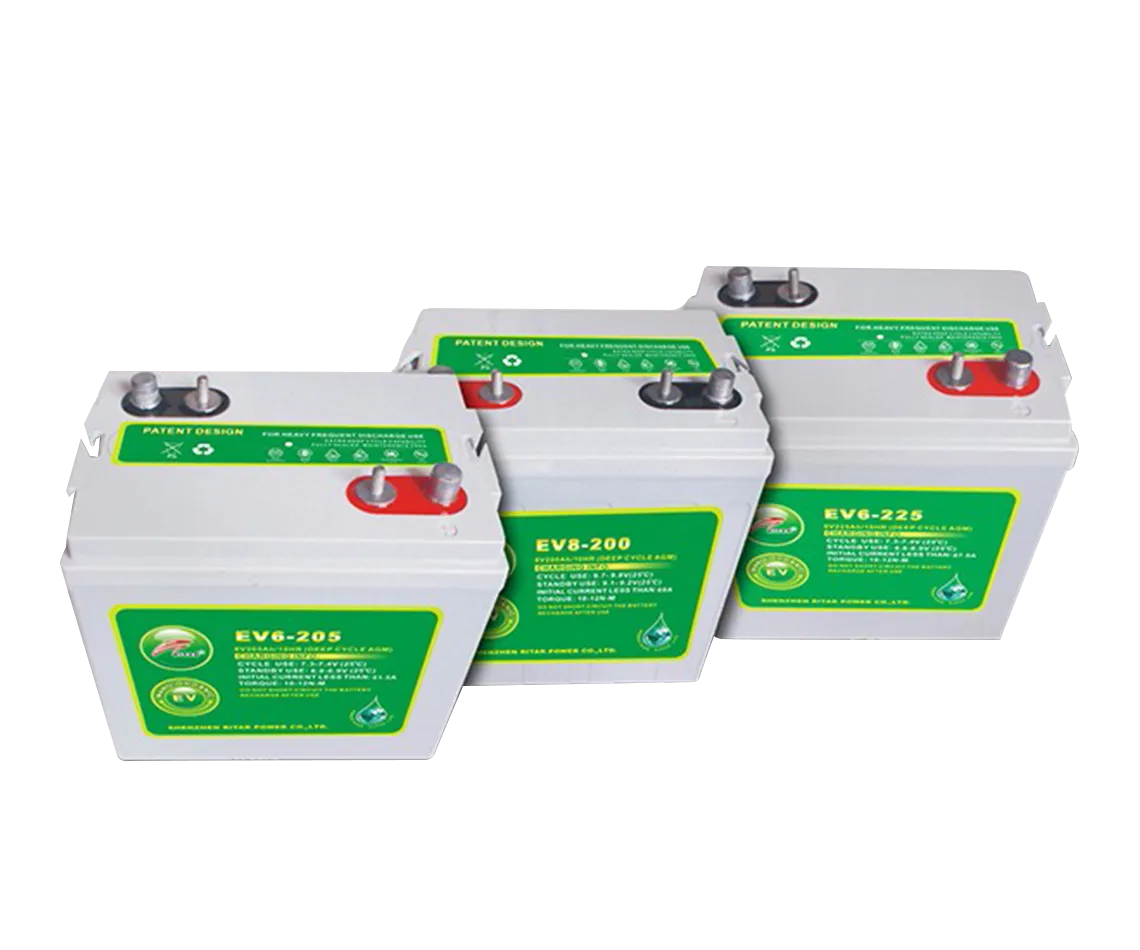

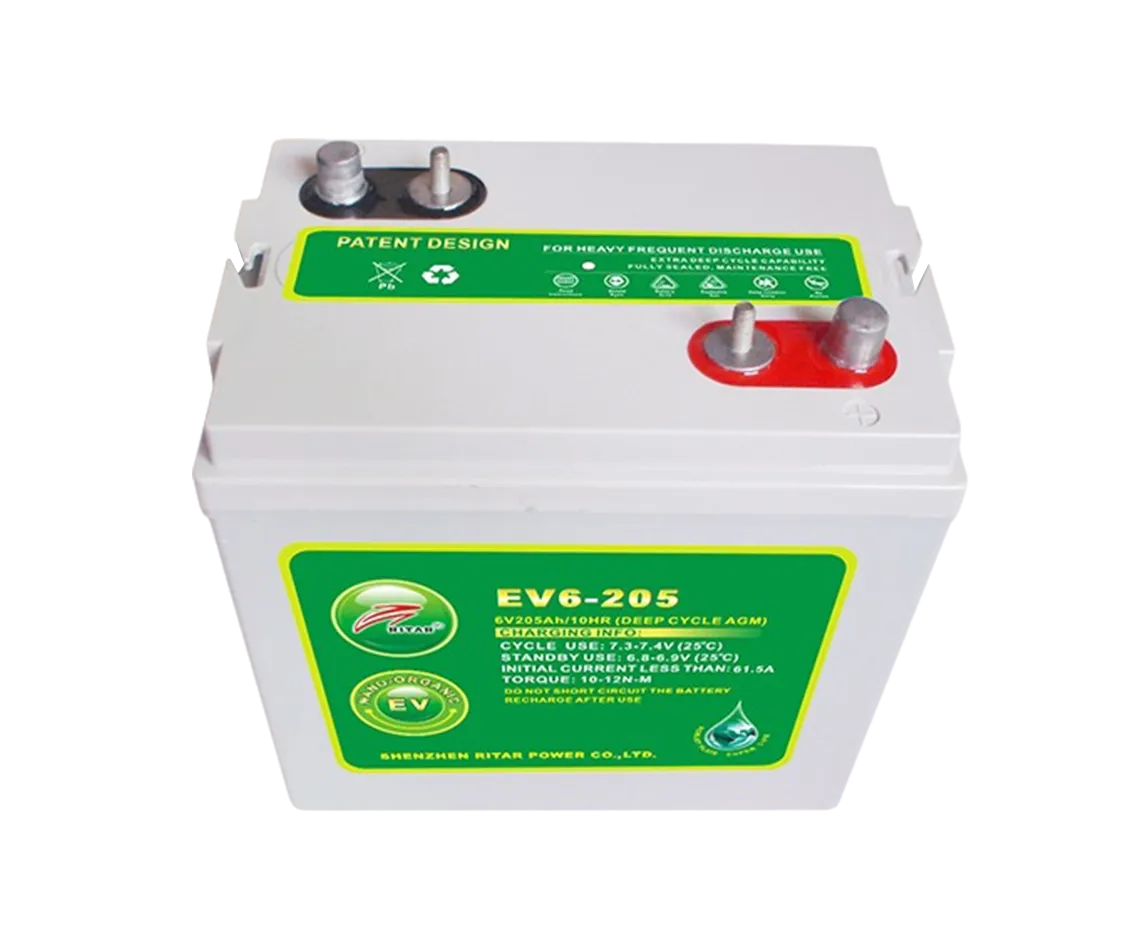

EV6-205	6	205	260	180	245	264	F14(M8)/F22(M8)	B
EV6-225S	6	225	260	180	245	264	F14(M8)/F22(M8)	B
EV6-210	6	210	322	177.5	226	231	F12(M8)	A
EV6-220	6	220	306	168	220	227	F12(M8)	B
EV6-225	6	225	260	180	263	282	F14(M8)/F22(M8)	B
EV6-240	6	240	260	180	263	282	F14(M8)/F22(M8)	B
EV6-310	6	310	295	178	346	364	F14(M8)/F22(M8)	B
EV6-335	6	335	295	178	346	364	F14(M8)/F22(M8)	B
EV6-400	6	400	295	178	404	423	F14(M8)/F22(M8)	B
EV8-170	8	170	260	182	295	314	F14(M8)/F22(M8)	C
EV8-170S	8	170	260	182	267	272	F14(M8) / F22(M8)	C
EV8-200	8	200	260	182	295	314	F14(M8)/F22(M8)	C

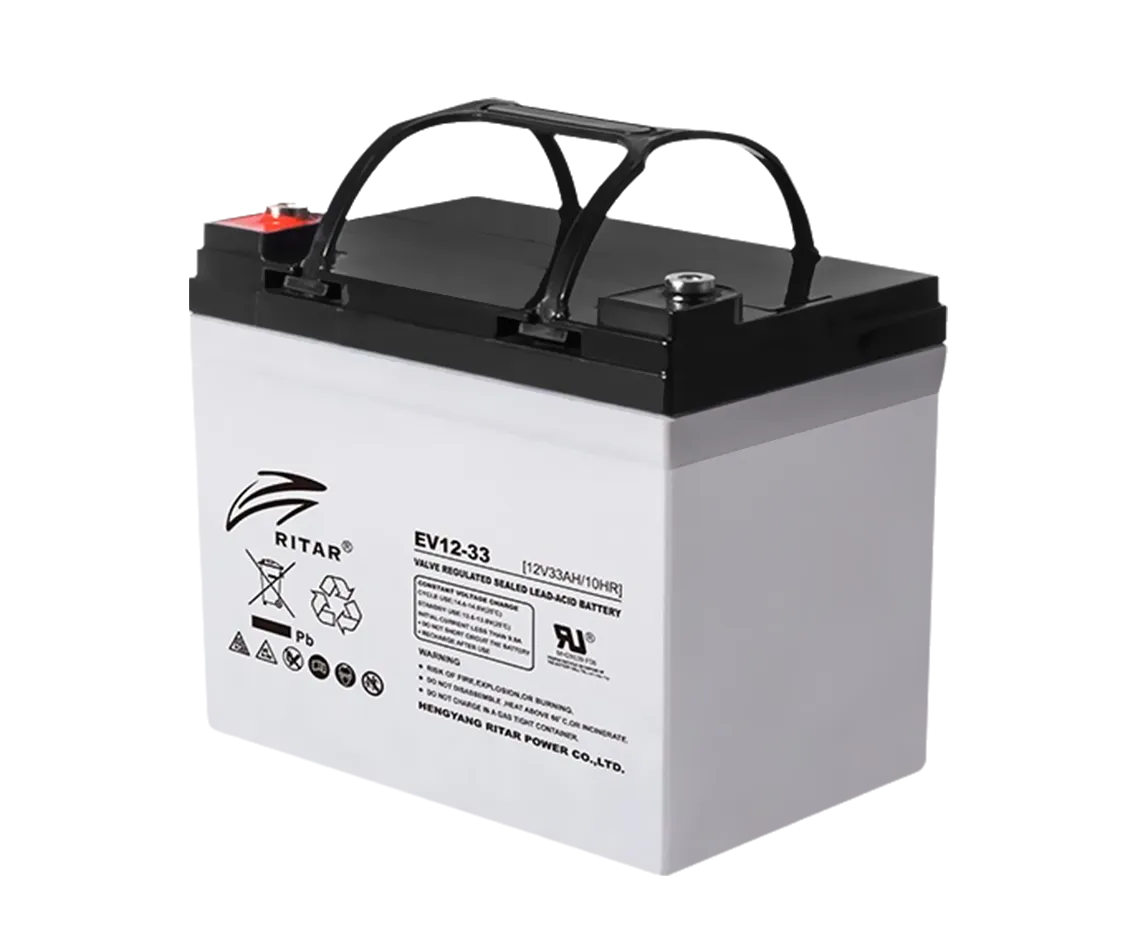

EV12-33	12	33	195	130	155	168	F7(M8) / F11(M6)	C
EV12-33H	12	33	195	130	155	168	F7(M8) / F11(M6)	C
EV12-45	12	45	198	166	169	169	F4(M5) / F11(M6)	D
EV12-55	12	55	229	138	211	216	F15(M6) / F11(M6)/L3	C
EV12-75	12	75	260	169	211	216	F15(M6) / F11(M6)/L4	C
EV12-90S	12	90	260	169	211	216	F22(M8)	C
EV12-100S	12	100	306.5	168.5	210	215	F15(M6) / F12(M8)/L4	C
EV12-100SH	12	100	306.5	168.5	210	215	F22(M8)	C
EV12-100	12	100	328	172	215	220	F5(M8) / F12(M8)/L7	C
EV12-110	12	110	328	172	215	220	F5(M8) / F12(M8)/L7	C
EV12-110H	12	110	328	172	215	220	F22(M8)	C
EV12-120	12	120	407	177	225	225	F5(M8)/F12(M8)	C
EV12-150	12	150	483	170	241	241	F5(M8) / F12(M8)	C
EV12-150S	12	150	327	180	271	273	F10(M8)	C
EV12-180	12	180	532	207	214	219	F16(M8) / F12(M8)/L6	C
EV12-180S	12	180	483	170	241	241	F5(M8)/F12(M8)	C
EV12-200	12	200	522	240	219	224	F16(M8) / F10(M8)/L6	E
EV12-215	12	215	382	179	351	370	F22(M8)/F23(M8)	C
EV12-215S	12	215	382	179	351	370	F22(M8)/F23(M8)	C
EV12-240	12	240	522	240	219	224	F16(M8) / F10(M8)/L6	E
EV12-280	12	280	521	268	220	225	F14(M8)/L6	E
EV12-300	12	300	521	268	220	225	F14(M8)/L6	E

Battery model	Rated voltage （V）	Rated capacity C₃（Ah）	Battery size				Terminal options	Terminal location
Battery model	Rated voltage （V）	Rated capacity C₃（Ah）	Length/mm	Width/mm	Height/mm	Total height/mm	Terminal options	Terminal location
3-EVF-200	6	200	260	180	268	273	F14(M8)/F22(M8)	B
4-EVF-150	8	150	260	182	280	280	F14(M8)/F22(M8)	C
6-EVF-70	12	70	260	168	210	210	F11(M6)	C
6-EVF-80	12	80	260	168	210	210	F11(M6)	C
6-EVF-100	12	100	330	172	214	214	F12(M8)	C
6-EVF-105	12	105	330	172	214	214	F12(M8)	C
