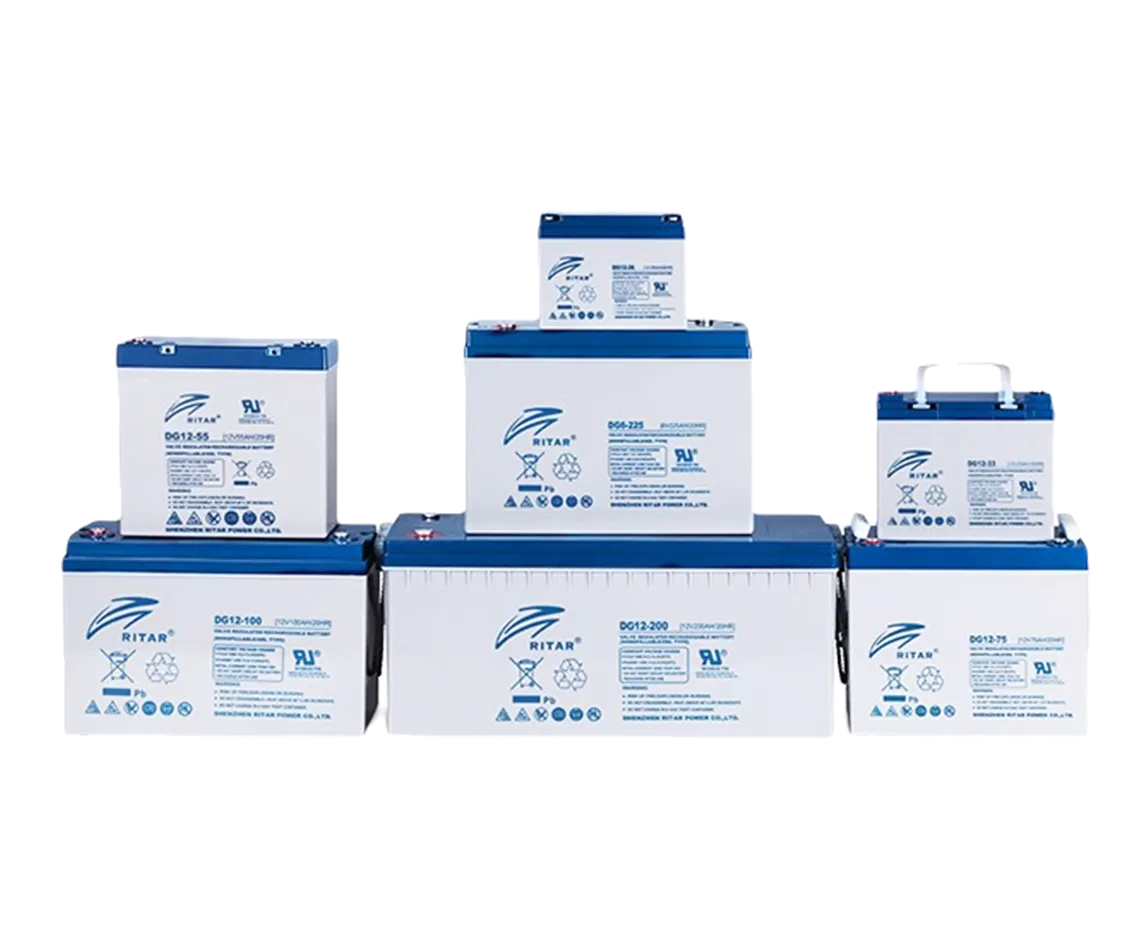

DG Series Lead-Acid Batteries

Capacity range: 26Ah-3000Ah (C20, 25℃)
Rated voltage: 2V/6V/12V
Designed floating charge life: 20 years for 2V series/15 years for 6V&12V series
Meet IEC, JIS, GB/T and YD/T testing standards
Pass UL, CE, TLC, ISO9001, ISO14001 and ISO45001 certifications

Learn More

Get a Free Quote

Our Features

Features of DG Series Lead-Acid Batteries

Capacity range: 26Ah-3000Ah (C20, 25℃)

Rated voltage: 2V/6V/12V

Designed floating charge life: 20 years for 2V series/15 years for 6V&12V series

Meet IEC, JIS, GB/T and YD/T testing standards

Pass UL, CE, TLC, ISO9001, ISO14001 and ISO45001 certifications

Adopt 1# electrolytic lead with a purity of up to 99.994%

Adopt gas-phase nano-silicon dioxide as the basic material of gel electrolyte

Adopt one-time gel addition and internal formation technology to greatly improve the cycle performance

Adopt special patented alloy formula to make the grid more corrosion-resistant

Adopt high temperature and high humidity curing process to ensure the life, capacity and batch consistency

The ear hanging process design has high consistency of plate curing and drying

Adopt hidden independent valve design to effectively avoid blockage of safety valve

Capacity range: 26Ah-3000Ah (C20, 25℃)

Rated voltage: 2V/6V/12V

Designed floating charge life: 20 years for 2V series/15 years for 6V&12V series

Meet IEC, JIS, GB/T and YD/T testing standards

Pass UL, CE, TLC, ISO9001, ISO14001 and ISO45001 certifications

Adopt 1# electrolytic lead with a purity of up to 99.994%

Adopt gas-phase nano-silicon dioxide as the basic material of gel electrolyte

Adopt one-time gel addition and internal formation technology to greatly improve the cycle performance

Adopt special patented alloy formula to make the grid more corrosion-resistant

Adopt high temperature and high humidity curing process to ensure the life, capacity and batch consistency

The ear hanging process design has high consistency of plate curing and drying

Adopt hidden independent valve design to effectively avoid blockage of safety valve

Our Specifications

Specifications of DG Series Lead-Acid Batteries

Battery model	Rated voltage （V）	Rated capacity C₂₀（Ah）	Battery size				Terminal options	Terminal location
Battery model	Rated voltage （V）	Rated capacity C₂₀（Ah）	Length/mm	Width/mm	Height/mm	Total height/mm	Terminal options	Terminal location
DG12-26	12	26	166	176	125	125	F3(M5) / F13-BP(M5)/T24(M5)	D
DG6-100	6	100	194	170	205	212	F14(M8)	A
DG6-150	6	150	260	180	245	252	F12(M8)	B

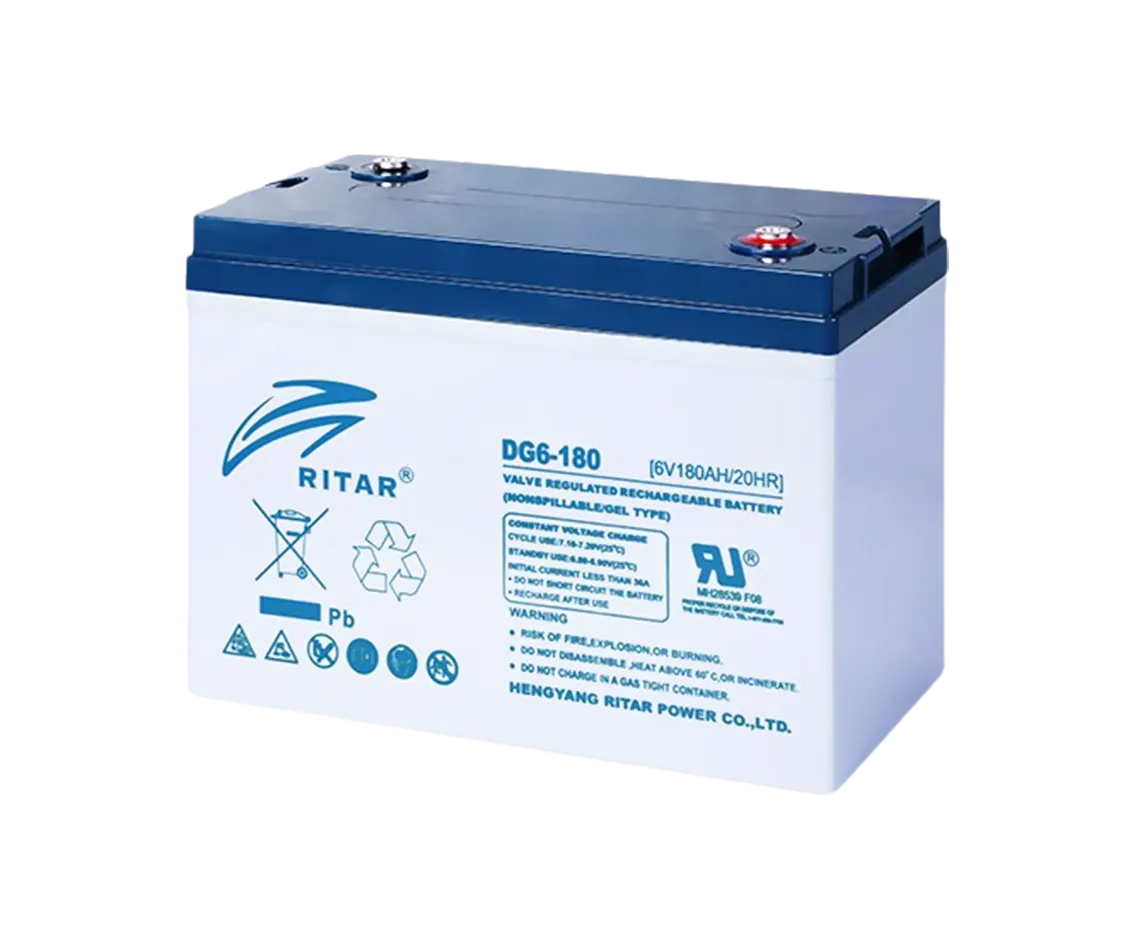

DG6-180	6	180	306	168	220	227	F12(M8)	B
DG6-200	6	200	322	177.5	226	231	F16(M8) / F14(M8)	A
DG6-200S	6	200	260	180	245	252	F12(M8)	B
DG6-225	6	225	322	177.5	226	231	F16(M8) / F14(M8)	A
DG6-225S	6	200	243	187	275	275	F14(M8)	B
DG6-280	6	280	295	178	346	351	F14(M8)	B
DG6-310	6	310	295	178	346	351	F14(M8)	B
DG6-335	6	335	295	178	346	351	F14(M8)	B

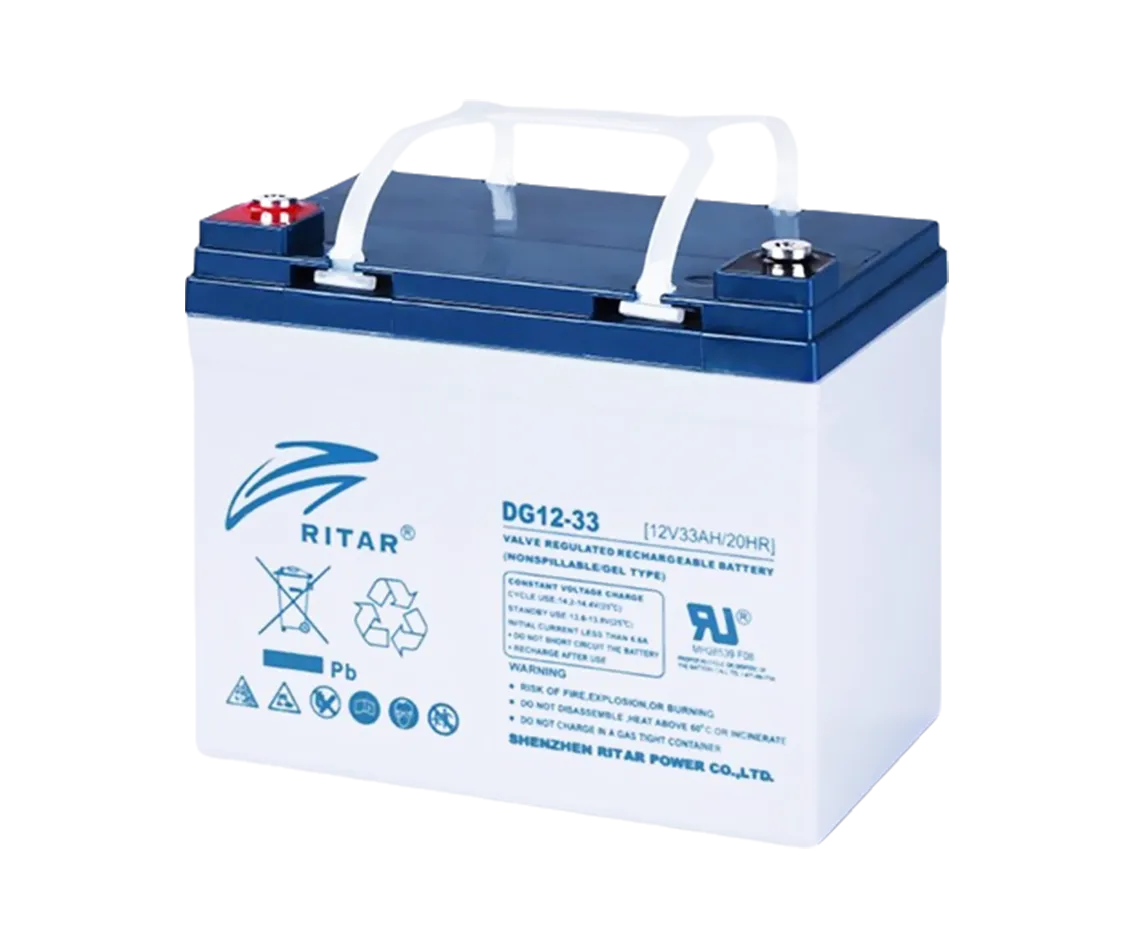

DG12-33	12	33	195	130	155	168	F7(M8) / F11(M6)	C
DG12-40	12	40	198	166	169	169	F4(M5) / F11(M6)	D
DG12-55	12	55	229	138	211	216	F15(M6) / F11(M6)/L3	C
DG12-60	12	60	260	169	211	216	F15(M6) / F11(M6)	C
DG12-65	12	65	350	167	182	182	F5(M8) / F11(M6)	C
DG12-70	12	70	350	167	182	182	F15(M6) / F11(M6)	C
DG12-70S	12	70	260	169	211	216	F15(M6) / F11(M6)	C
DG12-75	12	75	260	169	211	216	F15(M6) / F11(M6)	C
DG12-75S	12	75	350	167	182	182	F15(M6) / F11(M6)	C
DG12-80	12	80	306.5	168.5	210	215	F15(M6) / F11(M6)	C
DG12-100S	12	100	306.5	168.5	210	215	F15(M6) / F12(M8)/L4	C

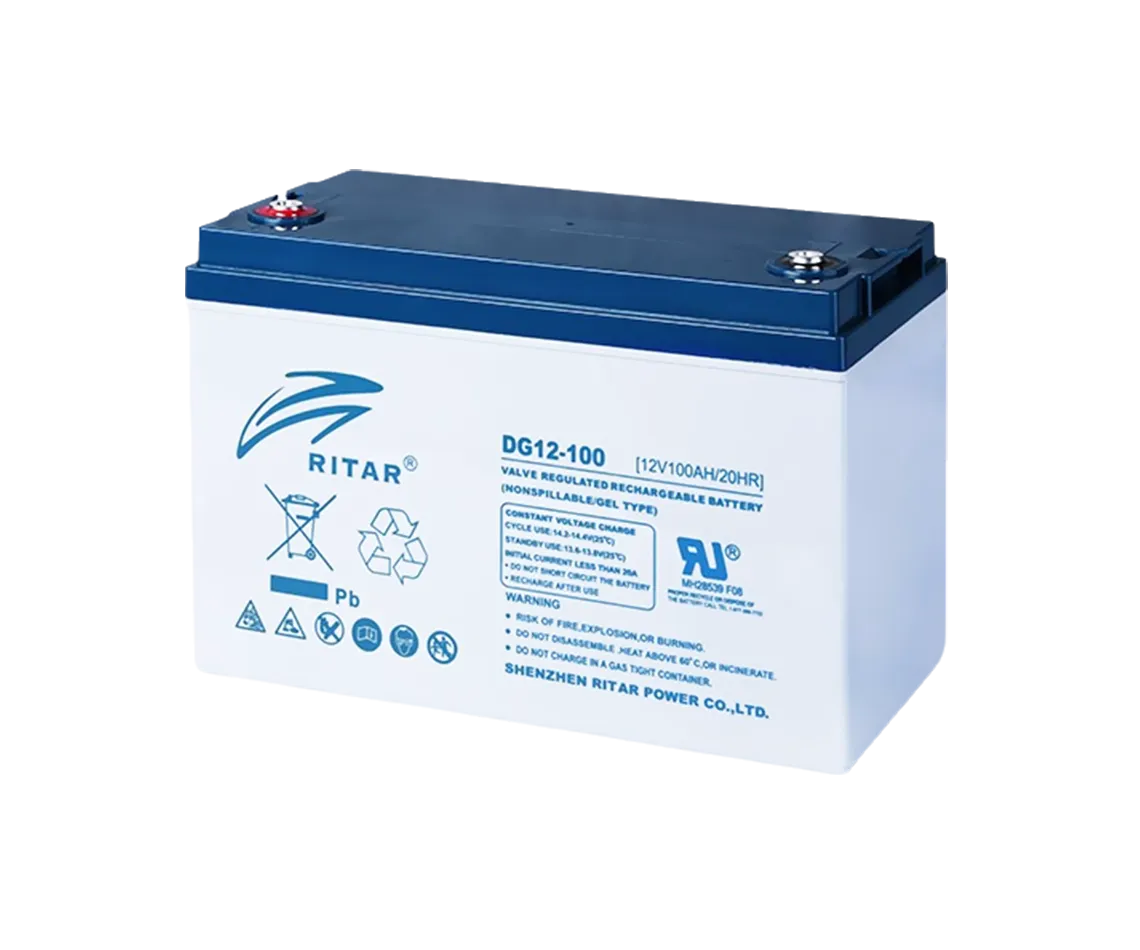

DG12-100	12	100	328	172	215	220	F5(M8) / F12(M8)/L7	C
DG12-120	12	120	407	177	225	225	F5(M8) / F12(M8)	C
DG12-134	12	134	340	173	280	287	F5(M8) / F12(M8)	C
DG12-145	12	145	340	173	280	287	F5(M8) / F12(M8)	C
DG12-150	12	150	483	170	241	241	F5(M8) / F12(M8)	C
DG12-160	12	160	532	207	214	219	F16(M8) / F12(M8)/L6	E
DG12-180	12	180	532	207	214	219	F16(M8) / F12(M8)/L6	E

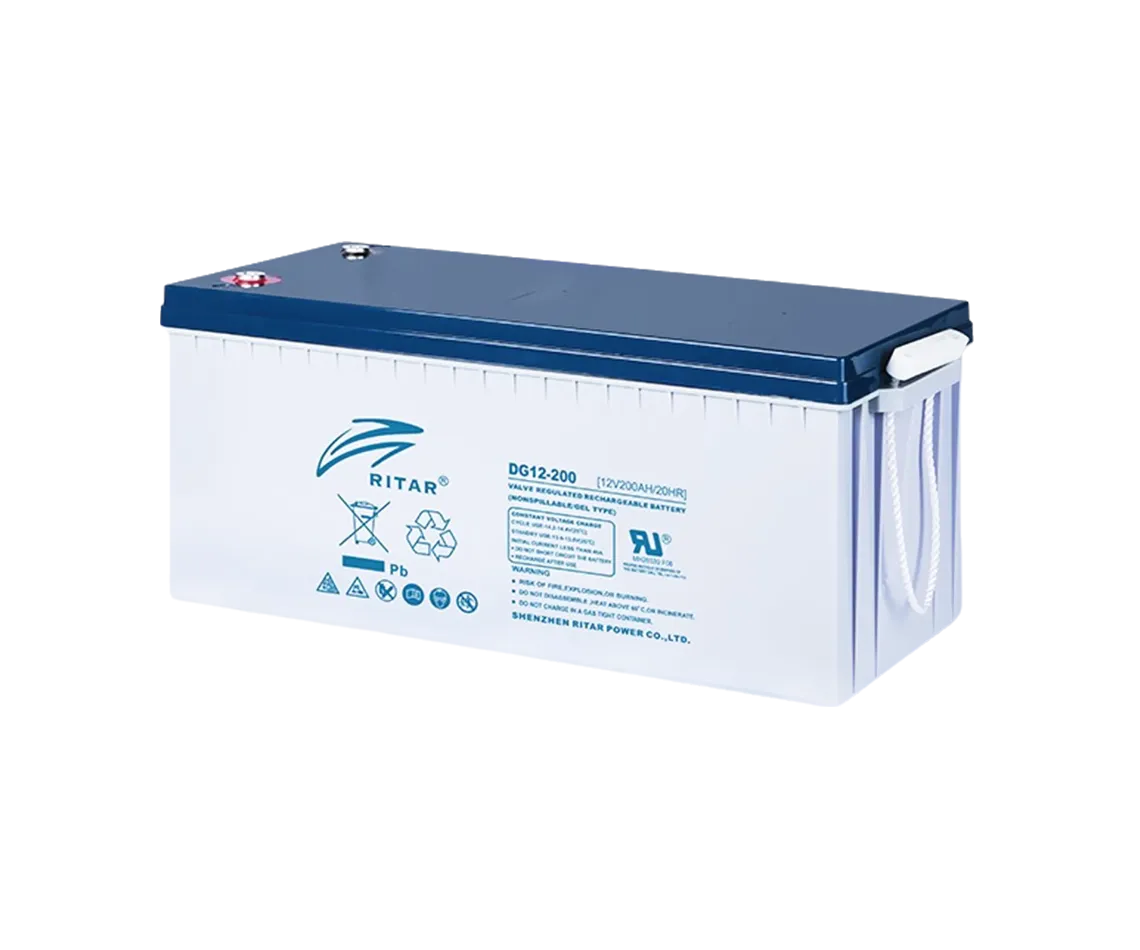

DG12-200	12	200	522	240	219	224	F16(M8) / F10(M8)/L6	E
DG12-225	12	225	522	240	219	224	F16(M8) / F10(M8)/L6	E
DG12-230	12	230	521	269	204	209	F10(M8)/L6	E
DG12-260	12	260	521	268	220	225	F14(M8)/L6	E
DG2-200	2	200	171	111	328	340	F10(M8)	G
DG2-250	2	250	171	111	328	340	F10(M8)	G
DG2-300	2	300	170	150	330	342	F10(M8)	G
DG2-400	2	400	170	150	330	342	F10(M8)	G
DG2-500	2	500	211	172	330	342	F10(M8)	G
DG2-600	2	600	241	172	330	342	F10(M8)	H
DG2-800	2	800	301	172	330	342	F10(M8)	H
DG2-1000	2	1000	410	172	330	342	F10(M8)	H
DG2-1200	2	1200	473	172	330	342	F10(M8)	H
DG2-1500	2	1500	355	337	330	342	F10(M8)	K
DG2-2000	2	2000	476	337	330	342	F10(M8)	K
DG2-2500	2	2500	696	340	330	342	F10(M8)	L
DG2-3000	2	3000	696	340	330	342	F10(M8)	L
