DC Series Lead-Acid Batteries

Capacity range: 26Ah-3000Ah (C20, 25℃)
Rated voltage: 2V/6V/12V
Meet IEC, GB/T and other testing standards
Pass UL, CE, ISO9001, ISO14001 and ISO45001 certifications
Use 1# electrolytic lead with a purity of up to 99.994%

Learn More

Get a Free Quote Download

Our Features

Features of DC Series Lead-Acid Batteries

Capacity range: 26Ah-3000Ah (C20, 25℃)

Rated voltage: 2V/6V/12V

Meet IEC, GB/T and other testing standards

Pass UL, CE, ISO9001, ISO14001 and ISO45001 certifications

Use 1# electrolytic lead with a purity of up to 99.994%

Use a patented active material formula designed for cyclic applications, and its cycle life is about 30% longer than that of ordinary batteries

Use a special patented alloy formula, and the grid has stronger corrosion resistance

The positive grid adopts a high grid ratio design to extend the battery life

Use high temperature and high humidity curing process to ensure life, capacity and batch consistency

The ear hanging process design has high consistency in plate curing and drying

Use a hidden independent valve design to effectively avoid safety valve blockage

Capacity range: 26Ah-3000Ah (C20, 25℃)

Rated voltage: 2V/6V/12V

Meet IEC, GB/T and other testing standards

Pass UL, CE, ISO9001, ISO14001 and ISO45001 certifications

Use 1# electrolytic lead with a purity of up to 99.994%

Use a patented active material formula designed for cyclic applications, and its cycle life is about 30% longer than that of ordinary batteries

Use a special patented alloy formula, and the grid has stronger corrosion resistance

The positive grid adopts a high grid ratio design to extend the battery life

Use high temperature and high humidity curing process to ensure life, capacity and batch consistency

The ear hanging process design has high consistency in plate curing and drying

Use a hidden independent valve design to effectively avoid safety valve blockage

Our Specifications

Specifications of DC Series Lead-Acid Batteries

Battery model	Rated voltage(V)	Rated capacity C20(Ah)	Battery size				Terminal options	Terminal location
Battery model	Rated voltage(V)	Rated capacity C20(Ah)	Length/mm	Width/mm	Height/mm	Total height/mm	Terminal options	Terminal location
DC12-26	12	26	166	176	125	125	F3(M5) / F13-BP(M5)/T24(M5)	D
DC12-26S	12	26	165	125	174	174	F7(M8) / F11(M6)	D
DC12-28S	12	28	165	125	174	174	F7(M8) / F11(M6)	D
DC6-180	6	180	306	168	220	227	F12(M8)	B

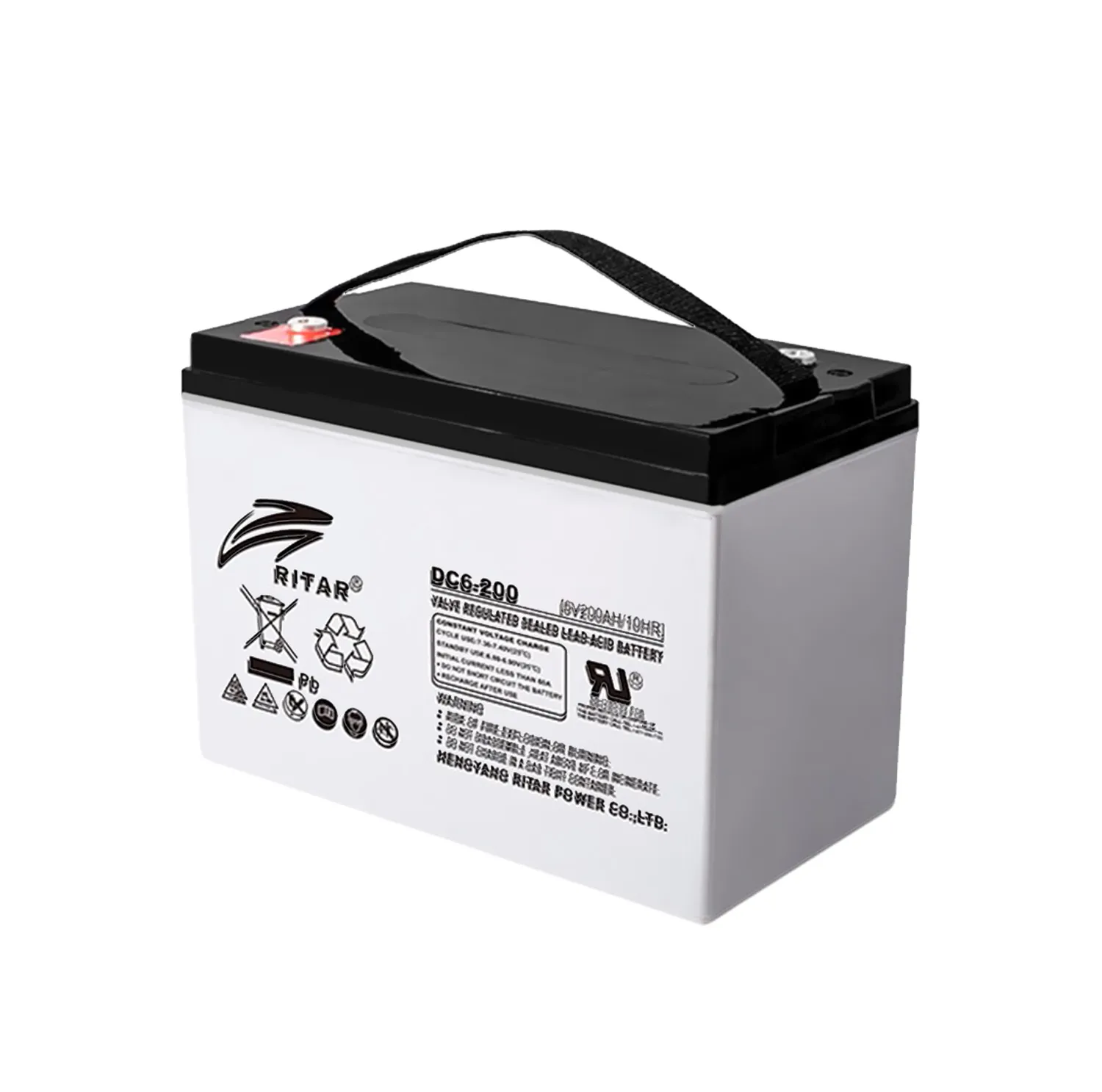

DC6-200	6	200	322	177.5	226	231	F16(M8) / F14(M8)	A
DC6-225	6	225	322	177.5	226	231	F16(M8) / F14(M8)	A
DC6-225S	6	225	243	187	275	275	F14(M8)	B
DC12-40	12	40	198	166	169	169	F4(M5) / F11(M6)	D
DC12-40A	12	40	198	166	169	169	F4(M5) / F11(M6)	D
DC12-55	12	55	229	138	211	216	F15(M6) / F11(M6)/L3	C

Battery model	Rated voltage(V)	Rated capacity C10(Ah)	Battery size				Terminal options	Terminal location
Battery model	Rated voltage(V)	Rated capacity C10(Ah)	Length/mm	Width/mm	Height/mm	Total height/mm	Terminal options	Terminal location
DC2-200	2	200	171	111	328	340	F10(M8)	G
DC2-250	2	250	171	111	328	340	F10(M8)	G
DC2-300	2	300	170	150	330	342	F10(M8)	G
DC2-400	2	400	170	150	330	342	F10(M8)	G
DC2-500	2	500	211	172	330	342	F10(M8)	G
DC2-600	2	600	241	172	330	342	F10(M8)	H
DC2-800	2	800	301	172	330	342	F10(M8)	H
DC2-1000	2	1000	410	172	330	342	F10(M8)	H
DC2-1200	2	1200	473	172	330	342	F10(M8)	H
DC2-1500	2	1500	355	337	330	342	F10(M8)	K
DC2-2000	2	2000	476	337	330	342	F10(M8)	K
DC2-2500	2	2500	476	337	330	342	F10(M8)	K
DC2-3000	2	3000	696	340	330	342	F10(M8)	L
