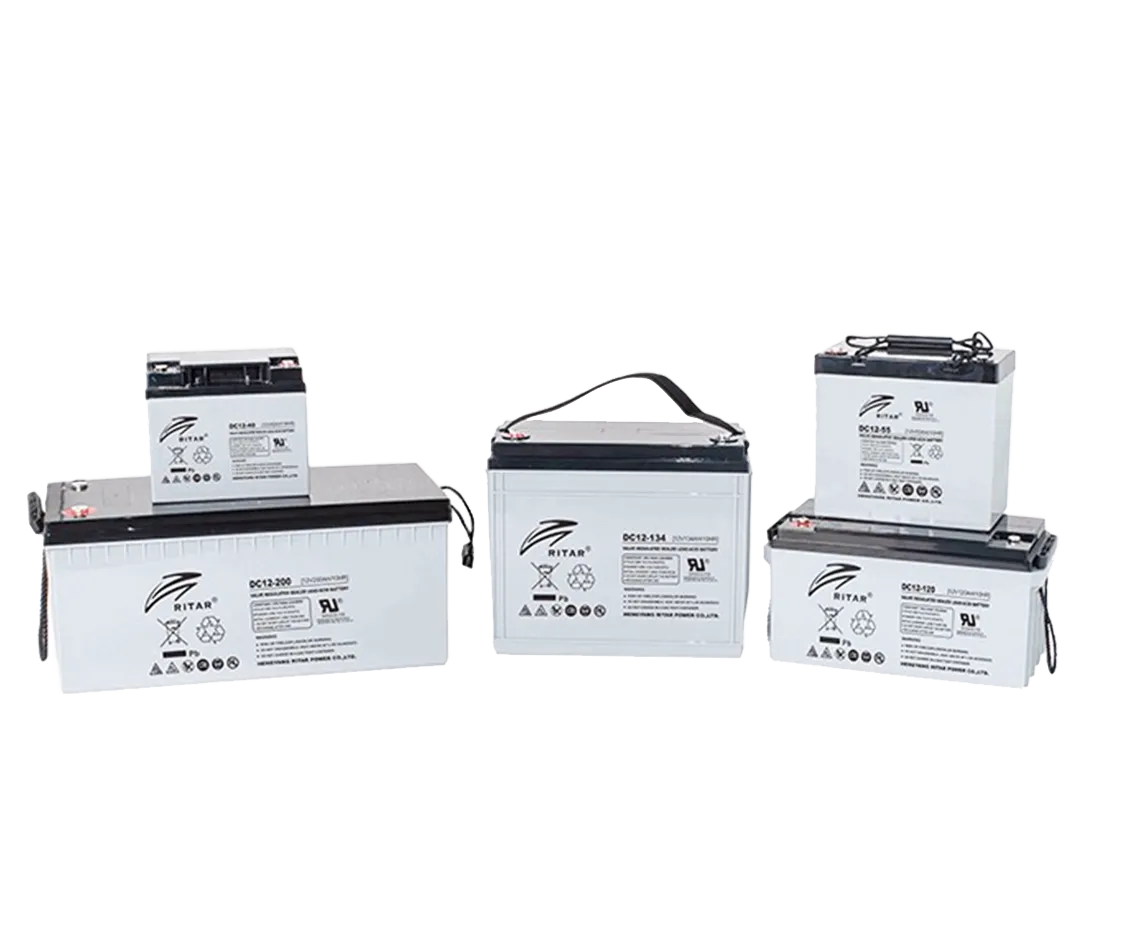

DC-C Series Lead-Acid Batteries

Capacity range: 33Ah-3000Ah (C20, 25℃)
Rated voltage: 2V/6V/12V
Certified by UL, CE, ISO9001, ISO14001 and ISO45001
Use 1# electrolytic lead with a purity of up to 99.994%
Use functional activated carbon and graphene as the active material formula of carbon materials

Learn More

Get a Free Quote

Our Features

Features of DC-C Series Lead-Acid Batteries

Capacity range: 33Ah-3000Ah (C20, 25℃)

Rated voltage: 2V/6V/12V

Certified by UL, CE, ISO9001, ISO14001 and ISO45001

Use 1# electrolytic lead with a purity of up to 99.994%

Use functional activated carbon and graphene as the active material formula of carbon materials

Use gas-phase nano-silica gel electrolyte and hydrogen evolution inhibition additives to make up for the shortcomings of lead-carbon battery water loss

Use one-time glue addition and internal formation technology to greatly improve the cycle performance

Use special patented alloy formula to make the grid more corrosion-resistant

Use high temperature and high humidity curing process to ensure life, capacity and batch consistency

Ear hanging process design, high consistency of plate curing and drying

Use hidden independent valve design to effectively avoid safety valve blockage

Capacity range: 33Ah-3000Ah (C20, 25℃)

Rated voltage: 2V/6V/12V

Certified by UL, CE, ISO9001, ISO14001 and ISO45001

Use 1# electrolytic lead with a purity of up to 99.994%

Use functional activated carbon and graphene as the active material formula of carbon materials

Use gas-phase nano-silica gel electrolyte and hydrogen evolution inhibition additives to make up for the shortcomings of lead-carbon battery water loss

Use one-time glue addition and internal formation technology to greatly improve the cycle performance

Use special patented alloy formula to make the grid more corrosion-resistant

Use high temperature and high humidity curing process to ensure life, capacity and batch consistency

Ear hanging process design, high consistency of plate curing and drying

Use hidden independent valve design to effectively avoid safety valve blockage

Our Specifications

Specifications of DC-C Series Lead-Acid Batteries

Battery model	Rated voltage （V）	Rated capacity C₂₀（Ah）	Battery size				Terminal options	Terminal location
Battery model	Rated voltage （V）	Rated capacity C₂₀（Ah）	Length/mm	Width/mm	Height/mm	Total height/mm	Terminal options	Terminal location
DC12-33C	12	33	195	130	155	168	F7(M8) / F11(M6)	C
DC12-40C	12	40	198	166	169	169	F4(M5) / F11(M6)	D
DC12-55C	12	55	229	138	211	216	F15(M6) / F11(M6)/L3	C
DC12-60C	12	60	260	169	211	216	F15(M6) / F11(M6)	C
DC12-65C	12	65	350	167	182	182	F5(M8) / F11(M6)	C
DC12-70C	12	70	350	167	182	182	F15(M6) / F11(M6)	C
DC12-75C	12	75	260	169	211	216	F15(M6) / F11(M6)	C
DC12-80C	12	80	306.5	168.5	210	215	F15(M6) / F11(M6)	C
DC12-90C	12	90	306.5	168.5	210	215	F15(M6) / F12(M8)/L4	C
DC12-100C	12	100	328	172	215	220	F5(M8) / F12(M8)/L7	C
DC12-120C	12	120	407	177	225	225	F5(M8) / F12(M8)	C
DC12-134C	12	134	340	173	280	287	F5(M8) / F12(M8)	C
DC12-145C	12	145	340	173	280	287	F5(M8) / F12(M8)	C
DC12-150C	12	150	483	170	241	241	F5(M8) / F12(M8)	C
DC12-160C	12	160	532	207	214	219	F16(M8) / F12(M8)/L6	E
DC12-180C	12	180	532	207	214	219	F16(M8) / F12(M8)/L6	E
DC12-200C	12	200	522	240	219	224	F16(M8) / F10(M8)/L6	E
DC12-225C	12	225	522	240	219	224	F16(M8) / F10(M8)/L6	E
DC12-230C	12	230	521	269	204	209	F10(M8)/L6	E
DC12-260C	12	260	521	268	220	225	F14(M8)/L6	E
DC2-200C	2	200	171	111	328	340	F10(M8)	G
DC2-250C	2	250	171	111	328	340	F10(M8)	G
DC2-300C	2	300	170	150	330	342	F10(M8)	G
DC2-400C	2	400	170	150	330	342	F10(M8)	G
DC2-500C	2	500	211	172	330	342	F10(M8)	G
DC2-600C	2	600	241	172	330	342	F10(M8)	H
DC2-800C	2	800	301	172	330	342	F10(M8)	H
DC2-1000C	2	1000	410	172	330	342	F10(M8)	H
DC2-1200C	2	1200	473	172	330	342	F10(M8)	H
DC2-1500C	2	1500	355	337	330	342	F10(M8)	K
DC2-2000C	2	2000	476	337	330	342	F10(M8)	K
DC2-2500C	2	2500	696	340	330	342	F10(M8)	L
DC2-3000C	2	3000	696	340	330	342	F10(M8)	L
