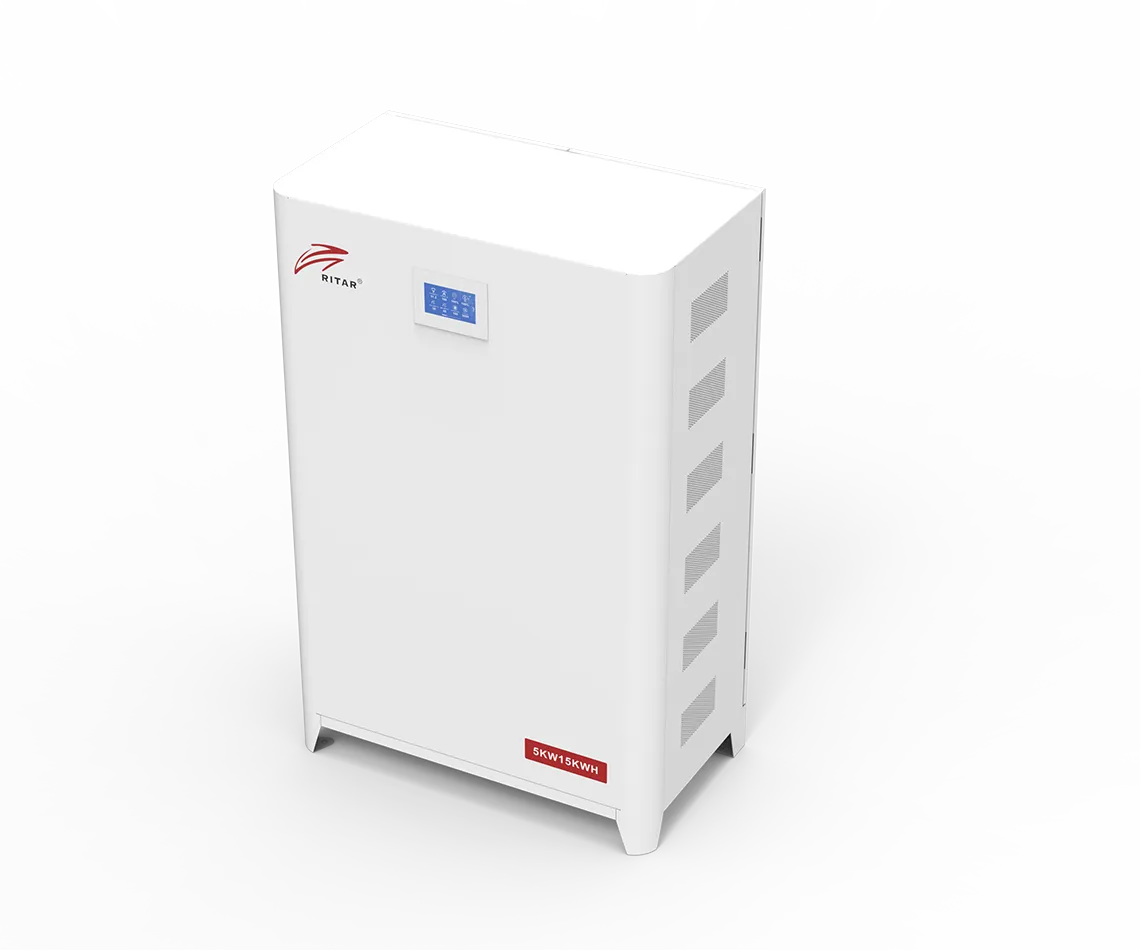

5kW-15kWh Battery Storage Cabinet
5kW-15kWh Battery Storage Cabinet

5kW-15kWh Battery Storage Cabinet

Learn More
Get a Free Quote Download
Our Features
Features of 5kW-15kWh Battery Storage Cabinet
Compact footprint, high integration level.

Compact footprint, high integration level.

Fully digital voltage and current dual-loop control with advanced SPWM technology, outputting pure sine wave.

Fully digital voltage and current dual-loop control with advanced SPWM technology, outputting pure sine wave.

Four selectable charging modes: PV Only, Grid Priority, PV Priority, Hybrid Charging.

Four selectable charging modes: PV Only, Grid Priority, PV Priority, Hybrid Charging.

Two output modes: Grid Bypass and Inverter Output, providing uninterrupted power supply functionality.

Two output modes: Grid Bypass and Inverter Output, providing uninterrupted power supply functionality.

Eco Mode: Reduce no-load power consumption.

Eco Mode: Reduce no-load power consumption.

Intelligent speed-adjustable fans: efficient cooling and extended system lifespan.

Intelligent speed-adjustable fans: efficient cooling and extended system lifespan.

Multiple protection features: comprehensive 360° safety.

Multiple protection features: comprehensive 360° safety.

Compact footprint, high integration level.
Fully digital voltage and current dual-loop control with advanced SPWM technology, outputting pure sine wave.
Four selectable charging modes: PV Only, Grid Priority, PV Priority, Hybrid Charging.
Two output modes: Grid Bypass and Inverter Output, providing uninterrupted power supply functionality.
Eco Mode: Reduce no-load power consumption.
Intelligent speed-adjustable fans: efficient cooling and extended system lifespan.
Multiple protection features: comprehensive 360° safety.
01
/
05
Our Specifications

Specification of 5kW-15kWh Battery Storage Cabinet


Model
RITAR-OPzV-15 kWh Cabinet
Grid Input

Input Voltage Range
(170V-280V) ±2%<br>(90V-280V) ±2%
Rated Input Voltage
220/230V
Frequency
50Hz/60Hz
Efficiency
>95%
Maximum Bypass Overload Current
40A
Inverter Output
Rated Output Power
5500W
Maximum Peak Power
11000VA
Rated Output Voltage
230Vac
Carrying Capacity
4HP
Output Frequency Range
50Hz/60Hz
PV Input
MPPT Voltage Range
120-450Vdc
Maximum Input Power
6000W
Maximum Open Circuit Voltage
500Vdc
Operating Voltage Range
120~500Vdc
General Parameters
Dimensions(WHD)
11856501810mm
Weight
900kg
Operating Temperature
-10℃~55℃
Humidity Range
5% ~ 95%
Cooling Method
Intelligent air-cooled
Communication
RS485 (WiFi/GPRS)
Output Mode
Off-grid (Default) / hybrid
Battery Type
OPzV Solid lead battery
Battery Parameters
Energy Storage Capacity
15kWh
Voltage Range
43.2V-56.4V
Battery Number
24
Cell Voltage
2V
Cell Capacity
300Ah
Rated Battery Voltage
48Vdc
