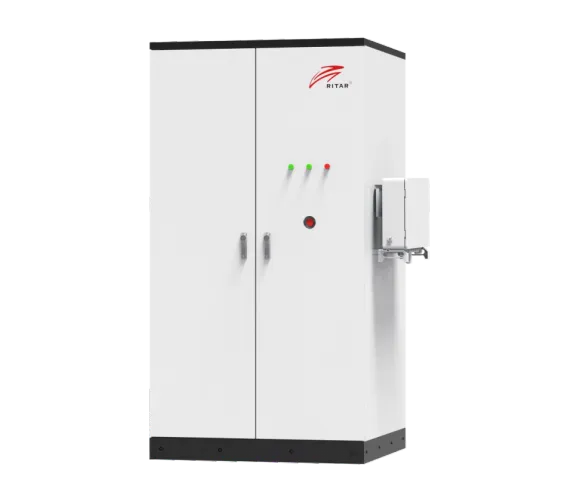

EnerCube-100kW/200kWh-H Battery Storage Cabinet

Learn More
Get a Free Quote

Features of EnerCube-100kW/200kWh-H Lithium Battery

Features of EnerCube-100kW/200kWh-H Lithium Battery
Our Specifications

Specification of EnerCube-100kW/200kWh-H Lithium Battery

ModelEnerCubeEnerCubeEnerCube
DC battery parameters
Types of batteriesLFP280AhLFP280AhLFP280Ah
Battery pack configuration
14.336kWh/1P16S
Battery System Configuration100kWh/1P112S100kWh/1P224S100kWh/1P240S
Battery voltage range336~403V627~806V672~864V
Number of temperature measurements568490
AC Parameters(On-grid)
AC rated power50kW100kW100kW
AC maximum power55kW110kW110kW
AC curent distortion rate<3%<3%<3%
Grid voltage range
380 / 400V
Rated current (A)72.5144144
Rated grid frequency
50Hz / 60Hz
AC Parameters(Off-grid)
AC current distortion rate<3%<1% Linear <5% nonlinear<1% Linear <5% nonlinear
Grid voltage range
380/400V
Rated grid frequency
50Hz/60Hz
Overload capacity150%(10s)110% long-term,
120% 1min		110% long-term,
120% 1min
PV Input
Max.Input Voltage (V)100010001000
MPPT voltage range (V)150~850250~850250~850




Max. PV power (kWp)75120/180/240120/180/240
MPPT module quantity402/3/402/3/4
System parameters
Maximum system effciency≥91%
Charge / discharge ratio≤0.5C
The depth of discharge100%DOD
Cycles>8000
CommunicationCAN / RS485 / LAN
IP classIP55
Type of coolingAir cooling
Operating temperature-35°C~+55°C
Relative humidity5-95%RH, No condensation
Noise<70dB
Altitude<2000m
Size(L*H*D)1200*2280*1100mm+
1500*2280*1100mm
Fire extinguishing systemAerosol+Pack-level immersion+Active warning
Weight2500kg(DC BESS) +1316kg(PCS)
