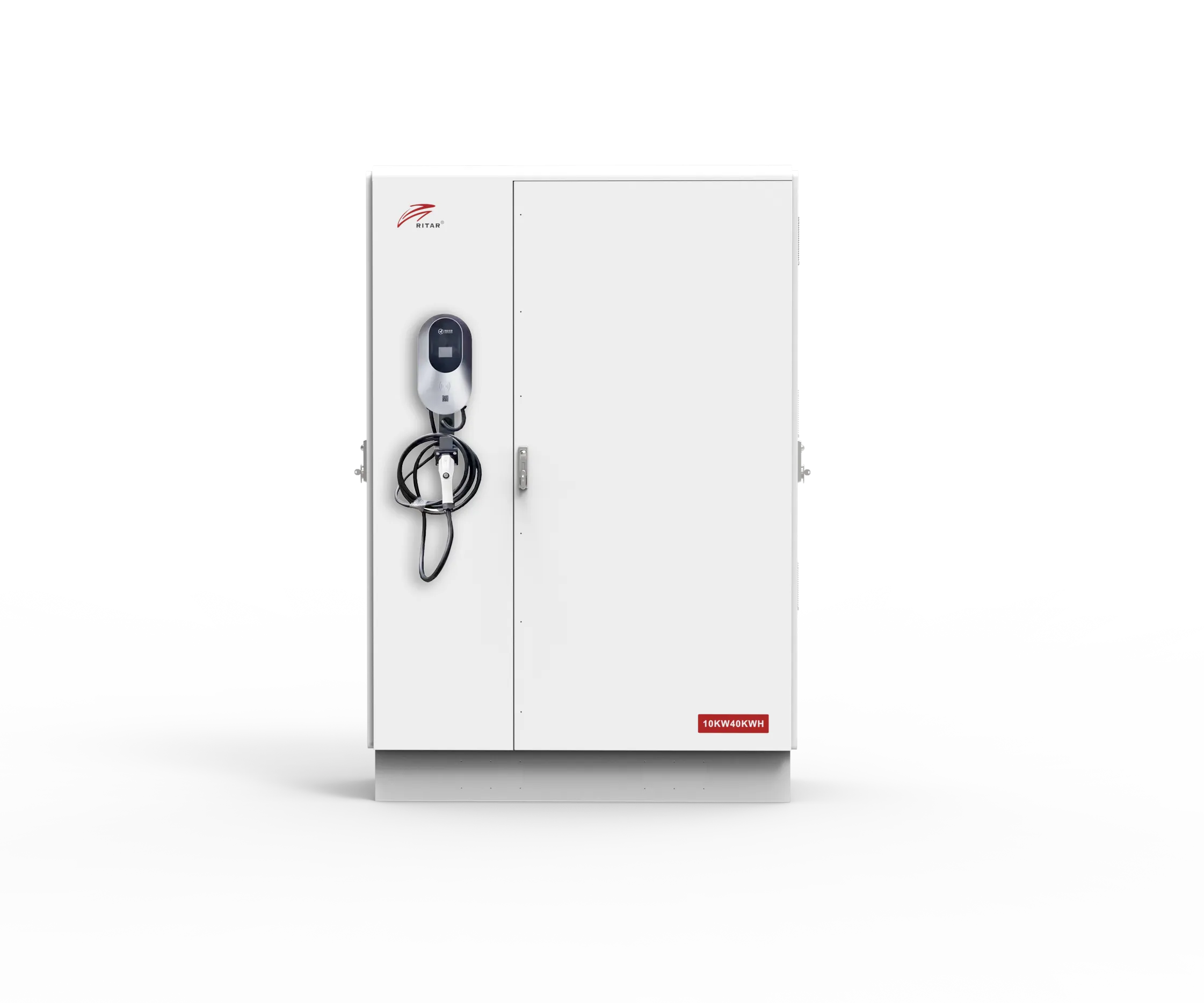

10kW-40kWh Battery Storage Cabinet

Name: 10kW-40kWh Battery Storage Cabinet
Brand: Ritar International Group

Learn More

Get a Free Quote Download

Our Features

Features of 10kW-40kWh Battery Storage Cabinet

High Safety

Independently developed patented solid lead battery technology
Safe and stable low-voltage operation
Passed national fire safety certification
No fire, no explosion, safe and reliable

High Integration

Integrates 10kW/40kWh with an all-in-one design
Supports PV and grid power input
Supports on-grid and off-grid operation

Smart Cloud

LCD smart display interface, supports WIFI/4G
Cloud data interconnection, allowing real-time device status monitoring via mobile or PC

High Protection

Anti-islanding protection, AC short-circuit protection
DC reverse connection protection, output overcurrent protection
AI actively monitors PV string faults

Zero Disturbance

Natural cooling, silent operation
Ultra-slim body, flexible installation footprint

Multi-scenario

Modular cabinet design for easy disassembly and installation
Zero commissioning, quick adaptation to diverse residential and commercial energy storage scenarios

Independently developed patented solid lead battery technologySafe and stable low-voltage operationPassed national fire safety certificationNo fire, no explosion, safe and reliable

Integrates 10kW/40kWh with an all-in-one designSupports PV and grid power inputSupports on-grid and off-grid operation

LCD smart display interface, supports WIFI/4GCloud data interconnection, allowing real-time device status monitoring via mobile or PC

Anti-islanding protection, AC short-circuit protectionDC reverse connection protection, output overcurrent protectionAI actively monitors PV string faults

Natural cooling, silent operationUltra-slim body, flexible installation footprint

Modular cabinet design for easy disassembly and installationZero commissioning, quick adaptation to diverse residential and commercial energy storage scenarios

Our Specifications

Specification of 10kW-40kWh Battery Storage Cabinet

Model	10kW/40kWh
PV Parameters
Maximum Power	15kW
Maximum Voltage	550V
MPPT Voltage Range	80-500V
MPPT Number	2
Number of Connectable Strings per MPPT	1/2
Maximum Input Current per MPPT	16A/16A+16A
Rated PV Input Voltage	360V
AC Parameters
Rated Output Power	10kW
Maximum Output Current	43.5A
Grid Input Voltage	230V
Maximum Apparent Output Power	10kVA
Rated Grid Frequency	50Hz/60Hz
Output Mode	On Grid (Default) / Off Grid / Hybrid
Protection	Anti-islanding protection, AC output overcurrent protection, PV reverse polarity protection, ground fault protection, leakage protection, insulation resistance detection, AC overvoltage/undervoltage protection, load output short circuit protection
Battery Parameters
Battery Type	OPzV Solid lead battery
Cell Voltage	2V
Cell Capacity	770Ah
Energy Storage Capacity	40kWh
Battery Number	24
Voltage Range	43.2~56.4V
Rated Battery Voltage	48Vdc
Charging Gun Parameters
Rated Power	7kW
Input Voltage	230VAC
DC Output Voltage Range	200-1000VDC
General Parameters
Dimensions (LWH)	16008002150
Weight	1900kg
Operating Temperature Range	-25°C~60°C
Cooling Method	Intelligent air-cooled
Maximum Working Altitude	0~2000m (derating above 2000m)
Operating Humidity	0~95% (non-condensing)
IP Rating	IP54
Display	LCD
Communication	RS485/CAN/WiFi (Optional)
