RITAR stational lead acid battery
Home >  Products >  Lead-acid Batteries >

DC-C Series

1. Capacity range: 33Ah-3000Ah (C20, 25℃)

2. Rated voltage: 2V/6V/12V

3. Certified by UL, CE, ISO9001, ISO14001 and ISO45001

4. Use 1# electrolytic lead with a purity of up to 99.994%

5. Use functional activated carbon and graphene as the active material formula of carbon materials

Product Features

1. Capacity range: 33Ah-3000Ah (C20, 25℃)

2. Rated voltage: 2V/6V/12V

3. Certified by UL, CE, ISO9001, ISO14001 and ISO45001

4. Use 1# electrolytic lead with a purity of up to 99.994%

5. Use functional activated carbon and graphene as the active material formula of carbon materials

6. Use gas-phase nano-silica gel electrolyte and hydrogen evolution inhibition additives to make up for the shortcomings of lead-carbon battery water loss

7. Use one-time glue addition and internal formation technology to greatly improve the cycle performance

8. Use special patented alloy formula to make the grid more corrosion-resistant

9. Use high temperature and high humidity curing process to ensure life, capacity and batch consistency

10. Ear hanging process design, high consistency of plate curing and drying

11. Use hidden independent valve design to effectively avoid safety valve blockage

Product parameters

Battery modelRated voltage (V)Rated capacity C20(Ah)Battery sizeTerminal optionsTerminal location
Length/mmWidth/mmHeight/mmTotal height/mm
DC12-33C1233195130155168F7(M8) / F11(M6)C
DC12-40C1240198166169169F4(M5) / F11(M6)D
DC12-55C1255229138211216F15(M6) / F11(M6)/L3C
DC12-60C1260260169211216F15(M6) / F11(M6)C
DC12-65C1265350167182182F5(M8) / F11(M6)C
DC12-70C1270350167182182F15(M6) / F11(M6)C
DC12-75C1275260169211216F15(M6) / F11(M6)C
DC12-80C1280306.5168.5210215F15(M6) / F11(M6)C
DC12-90C1290 306.5168.5210215F15(M6) / F12(M8)/L4C
DC12-100C12100328172215220F5(M8) / F12(M8)/L7C
DC12-120C12120407177225225F5(M8) / F12(M8)C
DC12-134C12134340173280287F5(M8) / F12(M8)C
DC12-145C12145340173280287F5(M8) / F12(M8)C

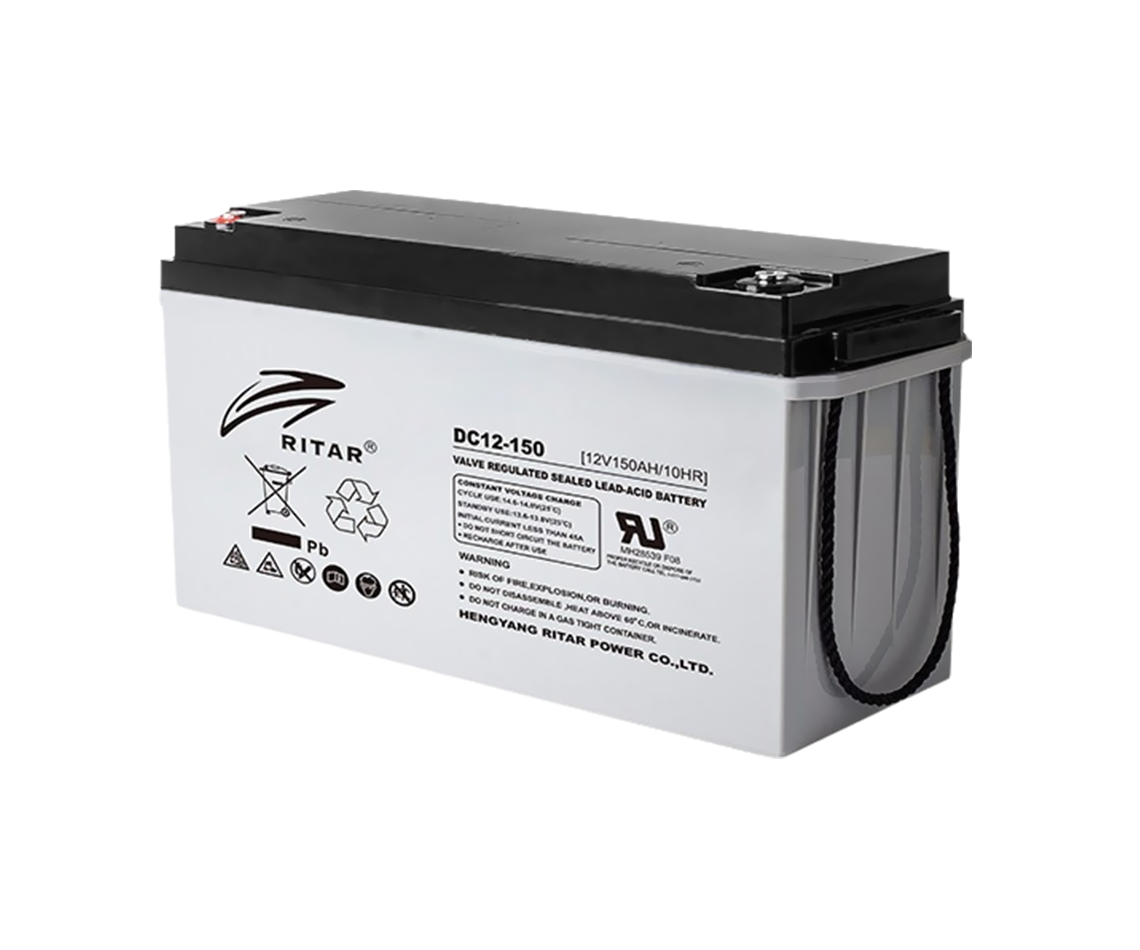

DC12-150C12150483170241241F5(M8) / F12(M8)C
DC12-160C12160532207214219F16(M8) / F12(M8)/L6E
DC12-180C12180532207214219F16(M8) / F12(M8)/L6E
DC12-200C12200522240219224F16(M8) / F10(M8)/L6E
DC12-225C12225522240219224F16(M8) / F10(M8)/L6E
DC12-230C12230521269204209F10(M8)/L6E
DC12-260C12260521268220225F14(M8)/L6E
DC2-200C2200171111328340F10(M8)G
DC2-250C2250171111328340F10(M8)G
DC2-300C2300170150330342F10(M8)G
DC2-400C2400170 150 330342F10(M8)G
DC2-500C2500211172330342F10(M8)G
DC2-600C2600241172330342F10(M8)H
DC2-800C2800301172330342F10(M8)H
DC2-1000C21000410172330342F10(M8)H
DC2-1200C21200473172330342F10(M8)H
DC2-1500C21500355337330342F10(M8)K
DC2-2000C22000476337330342F10(M8)K
DC2-2500C22500696340330342F10(M8)L
DC2-3000C23000696340330342F10(M8)L
